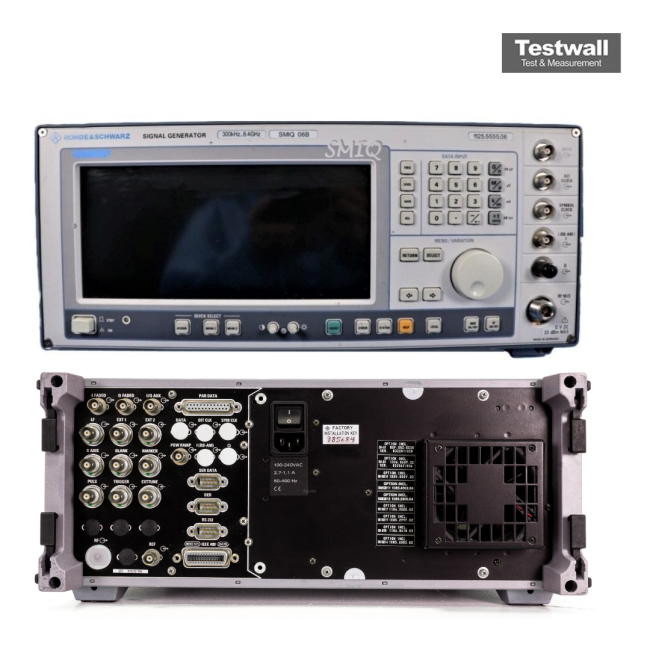

Rohde & Schwarz SMIQ06
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 6.4 GHz |
| Output Power Range | -144 dBm to +13 dBm |
| Frequency Resolution | 0.1 Hz |
| Phase Noise | -116 dBc/Hz at 20 kHz offset (1 GHz carrier) |
| Modulation Types | AM, FM, PM, Pulse, I/Q, Digital Modulation (QPSK, QAM, FSK, etc.) |
| I/Q Modulation Bandwidth | Up to 40 MHz (RF bandwidth) |
| AWGN Generator | Built-in Additive White Gaussian Noise generator |
| Interfaces | GPIB (IEEE 488), RS-232, optional LAN |
| Power Supply | 100 V to 240 V AC, 50/60 Hz |
| Operating Temperature Range | 0°C to 55°C |
| Model | SMIQ06 |
|---|
The Rohde & Schwarz SMIQ06 is a high-performance signal generator offering a frequency range from 300kHz to 6.4GHz, making it ideal for complex RF applications. It features fine-tuned frequency resolution down to 0.1Hz and output levels ranging from -144dBm to +10dBm. With output resolution adjustable from 0.1dB to 0.01dB and a low SSB phase noise of <-116dBc to <-110dBc/Hz, this unit ensures precise and stable signal generation for testing and development environments.
This signal generator is designed for a variety of testing scenarios, including communication systems, component testing, and advanced modulation formats. Its precision control and broad frequency spectrum deliver versatility and accuracy.
Testwall can supply the used Rohde & Schwarz SMIQ06, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMIQ06.
