Rohde & Schwarz SMP02
| Attribute | Value |
|---|---|
| Modulation | AM, FM, ΦM, pulse |
| Level Accuracy | ±0.9 dB at 0 dBm |
| Frequency Resolution | 0.1 Hz |
| Non-Harmonics | < -60 dBc |
| Switching Speed | < 11 ms + 5 ms/GHz |
| Frequency Range | 2 to 20 GHz |
| Output Power | -20 to +11.5 dBm |
| SSB Phase Noise | < -105 dBc/Hz (2 to 10 GHz), < -99 dBc/Hz (10 to 20 GHz), 10 kHz offset |
| Harmonics | < -30 dBc (< 1.8 GHz), < -40 dBc (≥ 1.8 GHz) |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 10 MHz, 1 × 10⁻⁶ per year |
| Interfaces | GPIB |
| Dimensions | 435 × 192 × 570 mm |
| Weight | 27 kg |
Rohde & Schwarz SMP02 Options:
- SMP02 - R&S SMP-B1 - OCXO Reference Oscillator
- SMP02 - R&S SMP-B11 - Frequency Extension 0.01 GHz to 2 GHz
- SMP02 - R&S SMP-B12 - Pulse Modulator 2 GHz to 20 GHz
- SMP02 - R&S SMP-B14 - Pulse Generator
- SMP02 - R&S SMP-B15 - RF Attenuator 27 GHz
- SMP02 - R&S SMP-B18 - Auxiliary Interface
- SMP02 - R&S SMP-B19 - Rear Connectors for RF, AF
- SMP02 - R&S SM-B2 - LF Generator
- SMP02 - R&S SM-B5 - FM/φM Modulator

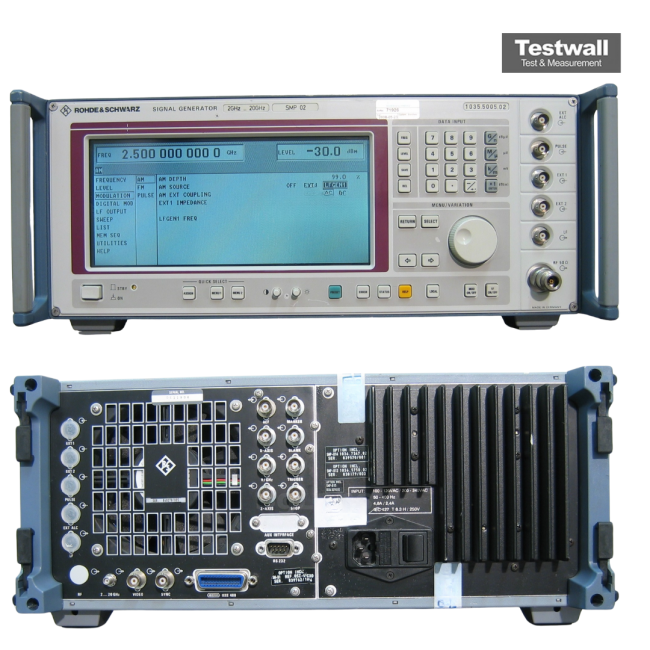

The Rohde & Schwarz SMP02 Microwave Signal Generator covers a frequency range from 10MHz to 20GHz with output power exceeding +11.5dBm. It offers AM, FM, and optional phase and pulse modulation. The unit delivers 0.1Hz frequency resolution, exceptional harmonic suppression, and superior phase noise performance, ideal for high-precision testing applications.
It supports various modulation types essential for evaluating radar and communication systems. Its adaptability makes it suitable for R&D, EMC, material testing, and environmental measurement tasks.
Testwall can supply the used Rohde & Schwarz SMP02, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMP02.
Options and configurations
- Frequency Range: 2 to 20 GHz (10 MHz to 20 GHz with Opt. B11)
- Output Power: -20 to +11.5 dBm (-130 dBm with Opt. B15/B17)
- Timebase Aging: 10 MHz, 1 × 10⁻⁶ per year (< 1 × 10⁻⁷ with Opt. B1)
