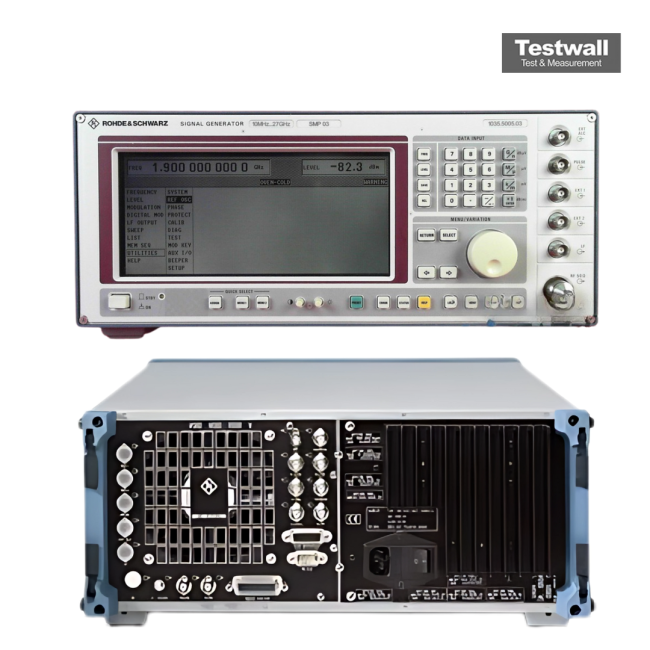

Rohde & Schwarz SMP03
| Attribute | Value |
|---|---|
| Modulation | AM, FM, ΦM, pulse |
| Level Accuracy | ±0.9 dB at 0 dBm |
| Frequency Resolution | 0.1 Hz |
| Switching Speed | < 11 ms + 5 ms/GHz |
| Interfaces | GPIB |
| Frequency Range | 2 to 27 GHz |
| Output Power | -20 to +10 dBm; +13 dBm at 20 to 27 GHz |
| SSB Phase Noise | < -105 dBc/Hz (2 to 10 GHz), < -99 dBc/Hz (10 to 20 GHz), 10 kHz offset |
| Harmonics | < -30 dBc (< 1.8 GHz), < -40 dBc (≥ 1.8 GHz) |
| Non-Harmonics | < -60 dBc (to 20 GHz), < -54 dBc (> 20 GHz) |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 10 MHz, 1 × 10⁻⁶ per year |
| Dimensions | 435 × 192 × 570 mm |
| Weight | 27 kg |
Rohde & Schwarz SMP03 10MHz To 27GHz Signal Generator Options:
- SMP03 - B1 - Ocxo Reference Oscillator
- SMP03 - B11 - Frequency Extension - 10MHZ To 2GHZ
- SMP03 - B12 - Pulse Modulator 2GHZ To 27GHZ
- SMP03 - B13 - Pulse Modulator 10MHZ To 2GHZ
- SMP03 - B14 - Pulse Generator
- SMP03 - B15 - Rf Attenuator
- SMP03 - B17 - Rf Attenuator
- SMP03 - B18 - Auxiliary Interface
- SMP03 - B19 - Rear Connectors For Rf And Af
- SMP03 - B2 - Lf Generator
- SMP03 - B20 - Rear Connectors For Rf And Af
- SMP03 - B5 - Fm & Phase Modulator
The Rohde & Schwarz SMP03 Microwave Signal Generator operates from 10MHz to 27GHz, offering a frequency resolution of 0.1Hz and output power greater than +13dBm. It supports AM, FM, and optionally phase and pulse modulation, ensuring exceptional harmonic and phase noise performance for precision signal generation and testing.
Designed for versatile applications, the SMP03 is ideal for radar, communications equipment testing, and material characterization in R&D, production, EMC, and environmental measurement scenarios.
Testwall can supply the used Rohde & Schwarz SMP03, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMP03.
Options and configurations
- Frequency Range: 2 to 27 GHz (10 MHz to 27 GHz with Opt. B11)
- Output Power: -20 to +10 dBm (-130 dBm with Opt. B15/B17); +13 dBm at 20 to 27 GHz
- Timebase Aging: 10 MHz, 1 × 10⁻⁶ per year (< 1 × 10⁻⁷ with Opt. B1)
