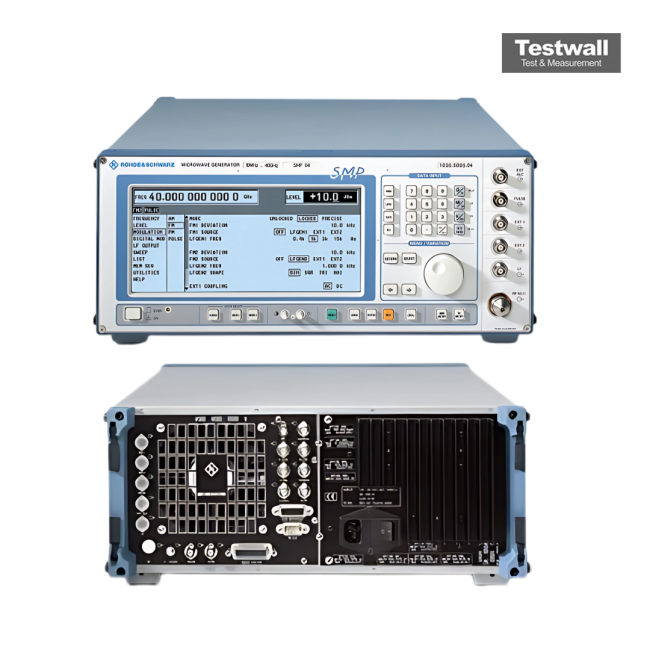

Rohde & Schwarz SMP04
| Attribute | Value |
|---|---|
| Modulation | AM, FM, ΦM, pulse |
| Level Accuracy | ±0.9 dB at 0 dBm |
| Frequency Resolution | 0.1 Hz |
| Switching Speed | < 11 ms + 5 ms/GHz |
| Interfaces | GPIB |
| Frequency Range | 2 to 40 GHz |
| Output Power | -20 to +10 dBm; +12 dBm at 20 to 33 GHz, +10 dBm at 33 to 40 GHz |
| SSB Phase Noise | < -105 dBc/Hz (2 to 10 GHz), < -99 dBc/Hz (10 to 20 GHz), 10 kHz offset |
| Harmonics | < -30 dBc (< 1.8 GHz), < -40 dBc (≥ 1.8 GHz) |
| Non-Harmonics | < -60 dBc (to 20 GHz), < -54 dBc (> 20 GHz) |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 10 MHz, 1 × 10⁻⁶ per year |
| Dimensions | 435 × 192 × 570 mm |
| Weight | 27 kg |
Rohde & Schwarz SMP04 Options:
- SMP04 - B1 - OCXO Reference Oscillator
- SMP04 - B11 - Frequency Extension 0.01 GHz to 2 GHz
- SMP04 - B12 - Pulse Modulator 2 GHz to 40 GHz
- SMP04 - B13 - Pulse Modulator 0.01 GHz to 2 GHz
- SMP04 - B14 - Pulse Generator
- SMP04 - B17 - RF Attenuator 40 GHz
- SMP04 - B18 - Auxiliary Interface
- SMP04 - B20 - Rear Connectors for RF, AF
- SMP04 - SM-B2 - LF Generator
- SMP04 - SM-B5 - FM/φM Modulator
The Rohde & Schwarz SMP04 Microwave Signal Generator offers outstanding frequency coverage from 2 GHz to 40 GHz, with a frequency resolution of 0.1 Hz and switching time of 11 ms. It delivers high spectral purity, low harmonic distortion at -30 dBc, and high output power up to 8 dBm, suitable for precise microwave testing. Equipped with various modulation types—AM, FM, Phase, SDK—and linear/list sweep modes, it supports SCPI programmability via GPIB and includes 50 test pattern storage.
Perfect for R&D, production, EMC, and environmental testing, the SMP04 is ideal for radar and communication systems evaluation, ensuring accuracy and flexibility with pulse modulation and 50 Ohm impedance.
Testwall can supply the used Rohde & Schwarz SMP04, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMP04.
Options and configurations
- Frequency Range: 2 to 40 GHz (10 MHz to 40 GHz with Opt. B11)
- Output Power: -20 to +10 dBm (-130 dBm with Opt. B15/B17); +12 dBm at 20 to 33 GHz, +10 dBm at 33 to 40 GHz
- Timebase Aging: 10 MHz, 1 × 10⁻⁶ per year (< 1 × 10⁻⁷ with Opt. B1)
