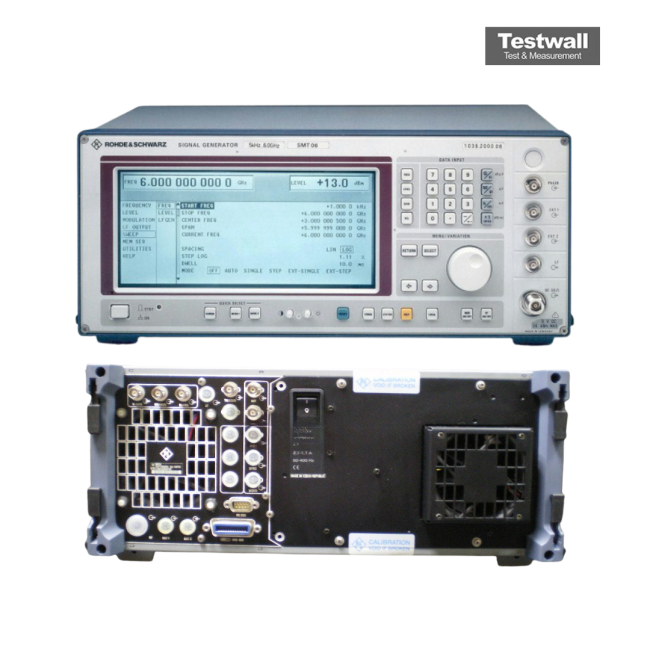

Rohde & Schwarz SMT06
| Attribute | Value |
|---|---|
| Frequency Range | 5 kHz to 6 GHz |
| Output Power | -144 to +13 dBm |
| Frequency Resolution | 0.1 Hz |
| Harmonics | < -30 dBc |
| Sweep Modes | step sweep, power sweep |
| SSB Phase Noise | -116 dBc/Hz at 1 GHz, 20 kHz offset |
| Modulation | AM, FM, ΦM, pulse |
| Level Accuracy | ±1 dB (to 1.5 GHz), ±1.5 dB (> 1.5 GHz), ±2 dB (> 3 GHz) |
| Non-Harmonics | < -80 dBc (to 1.5 GHz), < -68 dBc (> 3 GHz) |
| Timebase Aging | 10 MHz, 1 × 10⁻⁶ per year |
| Interfaces | GPIB |
The Rohde & Schwarz SMT06 Signal Generator operates across a 5kHz to 6GHz frequency range, delivering power levels from -144 dBm to +13 dBm. It offers AM, FM, PM, and optional pulse modulation, with broadband FM support from DC to 8 MHz. With phase noise as low as –116 dBc at 20 kHz offset (1GHz), and advanced programmable sweeps, it's tailored for analog receiver testing and EMS measurements.
Its exceptional signal quality, versatile modulation capabilities, and correction for external frequency response make it a prime choice for complex RF tasks.
Testwall can supply the used Rohde & Schwarz SMT06, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMT06.
Options and configurations
- Modulation: AM, FM, ΦM, pulse (Opt. SM-B3/B8/B9)
- Timebase Aging: 10 MHz, 1 × 10⁻⁶ per year (< 1 × 10⁻⁹ per day with Opt. SM-B1)
