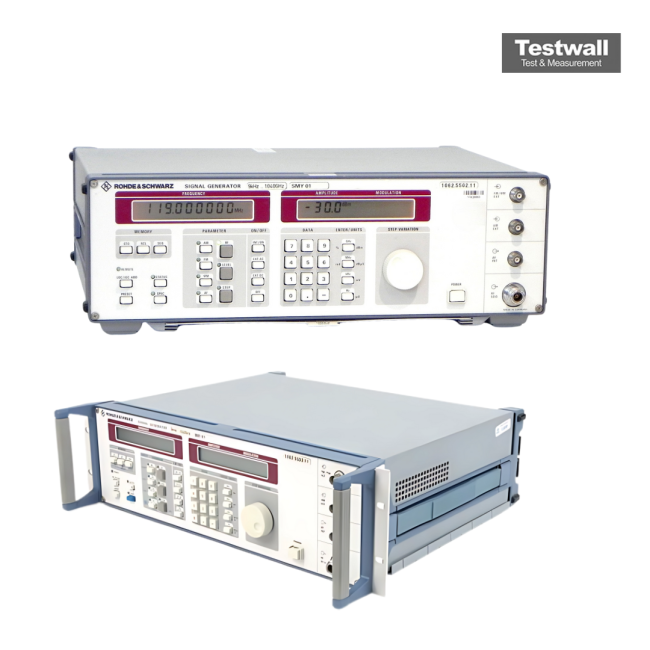

Rohde & Schwarz SMY01
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 1.04 GHz |
| Modulation | AM, FM, ΦM, pulse |
| Level Accuracy | ±1 dB |
| Frequency Resolution | 1 Hz |
| Harmonics | < -30 dBc |
| Output Power | -140 to +13 dBm |
| SSB Phase Noise | < -114 dBc/Hz at 1 GHz, 20 kHz offset |
| Non-Harmonics | < -70 dBc, offset > 5 kHz |
| Switching Speed | < 60 ms |
| Timebase Aging | 10 MHz, 1 × 10⁻⁶ per year |
| Interfaces | GPIB |
| Weight | 12 kg |
Rohde & Schwarz SMY01 Options:
- SMY01 - SMY-B1 - Reference Oscillator OCXO
- SMY01 - SMY-B10 - Rear-Panel Connectors for RF and NF
- SMY01 - SMY-B40 - Pulse Modulator and High Output Power
The Rohde & Schwarz SMY01 Signal Generator offers a frequency range from 9 kHz to 1040 MHz, making it ideal for AM, FM, and jM receiver testing. Its excellent signal purity, stability, and compact design support precise measurements and reliable performance in lab, production, and servicing applications.
This model delivers an efficient, cost-effective solution by focusing on essential functions without compromising signal quality or usability, offering versatile integration across various test setups.
Testwall can supply the used Rohde & Schwarz SMY01 Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMY01 Signal Generator.
Options and configurations
- Output Power: -140 to +13 dBm (+19 dBm with Opt. SMY-B40)
- Timebase Aging: 10 MHz, 1 × 10⁻⁶ per year (< 1 × 10⁻⁹ per day with Opt. SMY-B1)
