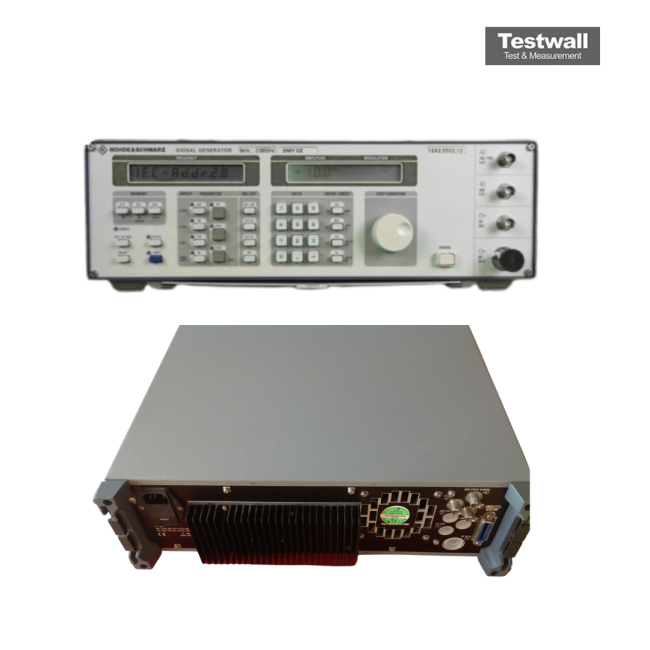

Rohde & Schwarz SMY02
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 2.08 GHz |
| Modulation | AM, FM, ΦM, pulse |
| Frequency Resolution | 1 Hz |
| Harmonics | < -30 dBc |
| Switching Speed | < 60 ms |
| Output Power | -140 to +13 dBm |
| SSB Phase Noise | < -114 dBc/Hz at 1 GHz, < -108 dBc/Hz at 2 GHz, 20 kHz offset |
| Level Accuracy | ±1 dB (to 1.04 GHz), ±1.5 dB (> 1.04 GHz) |
| Non-Harmonics | < -70 dBc (< -64 dBc > 1.04 GHz), offset > 5 kHz |
| Timebase Aging | 10 MHz, 1 × 10⁻⁶ per year |
| Interfaces | GPIB |
| Weight | 13 kg |
Rohde & Schwarz SMY02 Options:
- SMY02 - SMY-B1 - Reference Oscillator OCXO
- SMY02 - SMY-B10 - Rear Connectors for RF and LF
- SMY02 - SMY-B40 - High Output Power
- SMY02 - SMY-Z2 - Service Kit
The Rohde & Schwarz SMY02 Signal Generator offers a wide frequency resolution of 1 Hz and level range from -140 dBm to +19 dBm, extendable to 25 dBm. With precise level accuracy (<1 dB), low RF leakage, and modulation types including AM, FM, jM, and pulse, it ensures versatile test applications. Key features include FM-DC deviation up to 20 MHz, 2 MHz FM bandwidth for telemetry, 100 memory setups, and IEC625/IEEE488 remote interface.
Ideal for VCO simulation, stereo receiver testing, and squelch hysteresis measurements, the SMY02 supports sequence functions and non-interrupting level settings across 20 dB. The internal modulation generator spans 1 Hz to 500 kHz.
Testwall can supply the used Rohde & Schwarz SMY02 Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMY02 Signal Generator.
Options and configurations
- Output Power: -140 to +13 dBm (+19 dBm with Opt. SMY-B40)
- Timebase Aging: 10 MHz, 1 × 10⁻⁶ per year (< 1 × 10⁻⁹ per day with Opt. SMY-B1)
