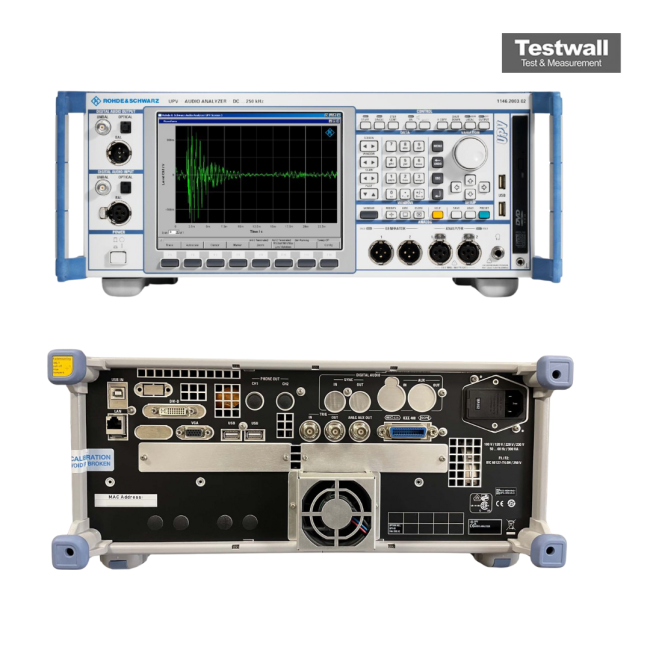

Rohde & Schwarz UPV
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 250 kHz |
| Measurement Channels | 2 input channels (analyzer) and 2 output channels (generator) |
| Dynamic Range | Up to 150 dB |
| Total Harmonic Distortion (THD+N) | Less than -110 dB (typical) |
| Generator Output Voltage | 0.1 mV to 20 V RMS (unbalanced), up to 40 V RMS (balanced) |
| Analyzer Input Voltage Range | 100 µV to 300 V RMS |
| Residual Noise | Less than -113 dBu (typical, 22 Hz to 22 kHz) |
| Interfaces | USB, LAN (Ethernet), GPIB (optional), IEC 61000 compliant |
| Display | 10.4-inch color TFT LCD touchscreen |
| Power Supply | 100 V to 240 V AC, 50 Hz to 60 Hz, approximately 150 VA |
Rohde & Schwarz UPV Options:
- UPV - B1 - Low Distortion Generator: For all applications that require extremely pure analog signals or an extended frequency range up to 200 kHz
- UPV - B2 - Digital Audio I/O 192 kHz: Digital audio interfaces (balanced, unbalanced and optical) for standard sampling rates of 32 kHz to 192 kHz
- UPV - B3 - Second Analog Generator: Second analog output amplifier allowing different signals to be output on both analog output channels
- UPV - B41 - I²S Interface: Second digital interface option installable in addition to UPV-B2, permitting audio analysis on I²S chips
- UPV - K21 - Digital Audio Protocol: For analyzing and generating digital auxiliary data (channel status, user, validity, parity)
- UPV - K22 - Jitter and Interface Test: For analyzing the physical parameters of the digital audio interface
- UPV - K4 - Remote Control: Ensures remote control operation via LAN, RS-232-C or IEC/IEEE bus interface in accordance with IEC 625/IEEE488
- UPV - U1 - 150 Ω Modification: Changes the source impedance of the analog generator from 200 Ω to 150 Ω
| Model | UPV |
|---|
The Rohde & Schwarz UPV is a high-performance audio analyzer supporting DC to 250 kHz bandwidth, integrated PC functionality, and 400 kHz sampling rate. It features versatile analog and digital signal generation, advanced multichannel FFT analysis with mHz resolution, and ultra-low distortion sinewave signals using the R&S®UPV-B1 generator.
Equipped with audio monitoring and multiple connectivity options including USB, GP-IB, and LAN, the UPV ensures efficient audio testing for professional environments.
Testwall can supply the used Rohde & Schwarz UPV, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz UPV.
