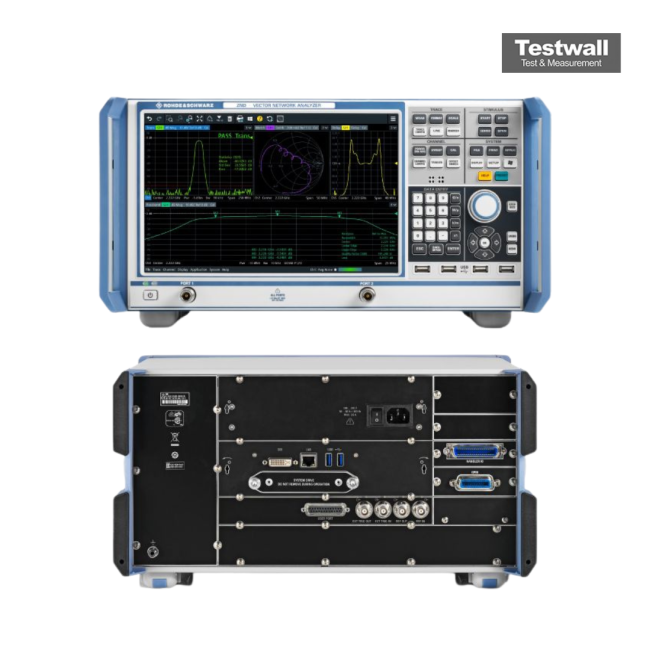

Rohde & Schwarz ZND Vector Network Analyser
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 4.5 GHz (extendable to 8.5 GHz with option) |
| Number of Ports | 2 ports |
| Dynamic Range | Up to 140 dB |
| Output Power Range | -40 dBm to +3 dBm |
| Measurement Speed | Up to 4.6 ms for 201 points (typical) |
| Trace Noise | <0.004 dB RMS at 10 Hz IF bandwidth |
| IF Bandwidth | 1 Hz to 500 kHz |
| Display | 12.1-inch XGA touchscreen display (1024 x 768 resolution) |
| Connectivity & Interfaces | USB, LAN (Ethernet), GPIB (optional), External Monitor Output |
| Operating System | Windows 10 IoT Enterprise (64-bit) |
Rohde & Schwarz ZND Vector Network Analyser Options:
- ZND - K1 - Extended Frequency Range, unidirectional, 8.5 GHz
- ZND - K2 - Time Domain Analysis (TDR)
- ZND - K5 - Full Test Set, base unit, bidirectional, 4.5 GHz
- ZND - K6 - Full Test Set, bidirectional, 8.5 GHz
- ZND - K7 - Extended Power Range for R&S ZND
- ZND - K8 - Extended Frequency Range, Full Test Set, bidirectional, 8.5 GHz
- ZND - K19 - 1 mHz Frequency Resolution
- ZND - B10 - GPIB Interface
- ZND - B19 - Additional Removable Harddisk
- ZN - B14 - Handler I/O
- ZZA - KN5 - 19" Rackmount Kit
| Model | ZND |
|---|
The Rohde & Schwarz ZND is a versatile two-port vector network analyzer offering unidirectional measurements from 100 kHz to 4.5 GHz, upgradeable to bidirectional analysis and a frequency range of up to 8.5 GHz. It features touchscreen operation, a dynamic range up to 120 dB, and supports power sweeps up to 48 dB.
Ideal for RF component testing and training, the ZND supports over 100 traces and channels, multiple bandwidths from 1 Hz to 300 kHz, and seamless integration with R&S calibration kits for quick, accurate calibration.
Testwall can supply the used Rohde & Schwarz ZND Vector Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZND Vector Network Analyzer.
