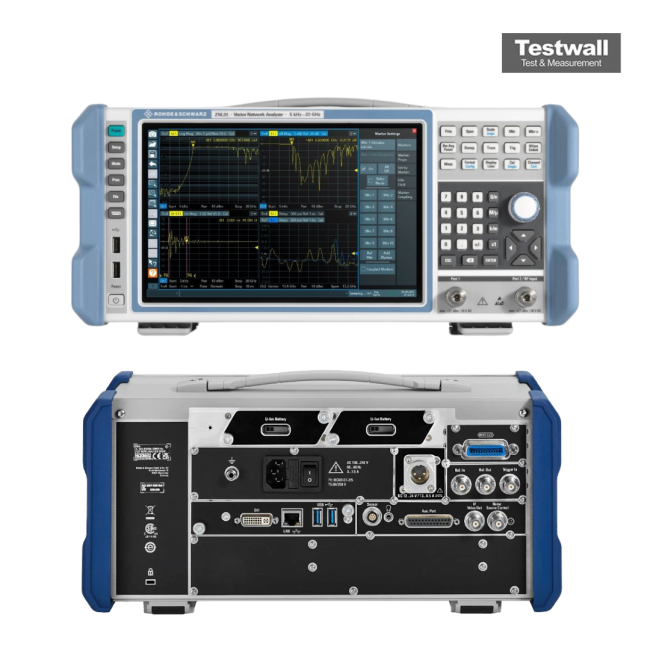

Rohde & Schwarz ZNL20
| Attribute | Value |
|---|---|
| Frequency Range | 5 kHz to 20 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 130 dB |
| Output Power | -40 dBm to +3 dBm |
| Measurement Speed | 4 ms per point (typical) |
| Trace Noise | 0.004 dB RMS (typical) |
| Connector Type | N-type 50 Ω female |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 pixels |
| Operating System | Windows 10 IoT Enterprise |
| Power Supply | 100 V to 240 V AC, 50 Hz to 60 Hz |
Rohde & Schwarz ZNL20 20GHz 2 Port Vector Network Analyzer Options:
- ZNL20 - B1 - Spectrum Analyzer Function
- ZNL20 - B19 - Additional Removable Pc Board With Ssd
- ZNL20 - B22 - Extended Power Range
- ZNL20 - B31 - Receiver Step Attenuator Port 1
- ZNL20 - B32 - Receiver Step Attenuator Port 2
- ZNL20 - FPL1-B10 - Gpib Interface
- ZNL20 - FPL1-B30 - Dc Power Supply (12 V/24 V)
- ZNL20 - FPL1-B31 - Lithium-Ion Battery Pack
- ZNL20 - FPL1-B4 - Ocxo Accurate Reference Frequency
- ZNL20 - FPL1-B40 - 40 MHZ Analysis Bandwidth
- ZNL20 - FPL1-B5 - Additional Interfaces
- ZNL20 - FPL1-K30 - Noise Figure Measurements
- ZNL20 - FPL1-K7 - Am/Fm/Fm Analog Modulation Analysis
- ZNL20 - FPL1-K9 - Measurements With R&S庐NRP Power Sensors
- ZNL20 - K14 - Independent Cw Source
- ZNL20 - K2 - Time Domain Analysis
- ZNL20 - K3 - Distance-To-Fault Measurements
| Model | ZNL20 |
|---|
Rohde & Schwarz ZNL20 20GHz 2 Port Vector Network Analyzer is a high-performance measurement device designed for precise analysis of electronic components, networks, and systems. With a frequency range up to 20 GHz, it offers excellent measurement accuracy and reliable performance for both R&D and manufacturing applications.
Perfect for tasks such as S-parameter measurements, impedance matching, and network characterization, the ZNL20 is engineered for ease of use with a user-friendly interface. It features fast sweep speeds and comprehensive data analysis capabilities for a wide range of network analysis tasks.
Testwall can supply the used Rohde & Schwarz ZNL20 20GHz 2 Port Vector Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZNL20 20GHz 2 Port Vector Network Analyzer.
