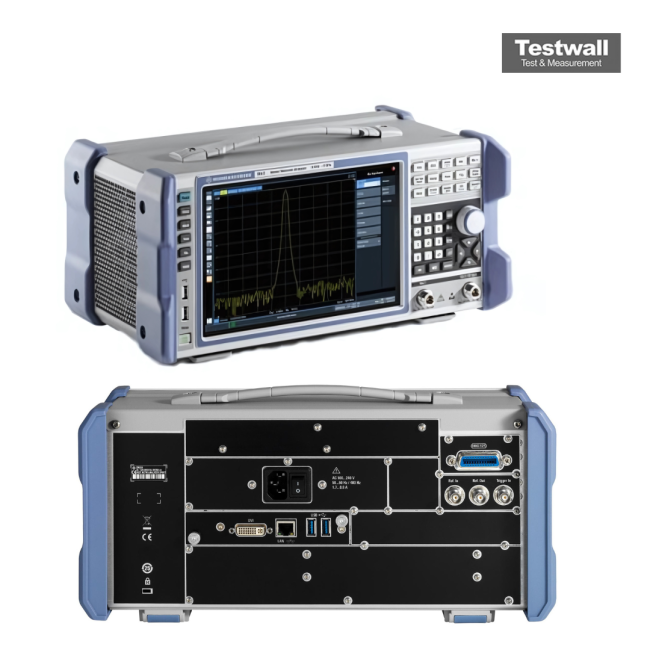

Rohde & Schwarz ZNL6
| Attribute | Value |
|---|---|
| Frequency Range | 5 kHz to 6 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 130 dB |
| Output Power | -40 dBm to +3 dBm |
| Measurement Speed | 4.4 ms per 201 points (typical) |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 pixels |
| Trace Noise | <0.004 dB RMS at 10 Hz IF bandwidth |
| Connector Type | N-type 50 Ω female (test ports) |
| Interfaces | USB, LAN (RJ-45), HDMI, GPIO |
| Power Supply | 100 V to 240 V AC, 50/60 Hz |
Rohde & Schwarz ZNL6 6GHz 2 Port Vector Network Analyzer Options:
- ZNL6 - B1 - Spectrum Analyzer Function
- ZNL6 - B19 - Additional Removable Pc Board With Ssd
- ZNL6 - B22 - Extended Power Range
- ZNL6 - B31 - Receiver Step Attenuator Port 1
- ZNL6 - B32 - Receiver Step Attenuator Port 2
- ZNL6 - FPL1-B10 - Gpib Interface
- ZNL6 - FPL1-B30 - Dc Power Supply (12 V/24 V)
- ZNL6 - FPL1-B31 - Lithium-Ion Battery Pack
- ZNL6 - FPL1-B4 - Ocxo Accurate Reference Frequency
- ZNL6 - FPL1-B40 - 40 MHZ Analysis Bandwidth
- ZNL6 - FPL1-B5 - Additional Interfaces
- ZNL6 - FPL1-K30 - Noise Figure Measurements
- ZNL6 - FPL1-K7 - Am/Fm/Fm Analog Modulation Analysis
- ZNL6 - FPL1-K9 - Measurements With R&S庐NRP Power Sensors
- ZNL6 - K14 - Independent Cw Source
- ZNL6 - K2 - Time Domain Analysis
- ZNL6 - K3 - Distance-To-Fault Measurements
| Model | ZNL6 |
|---|
The Rohde & Schwarz ZNL6 is a high-performance 6GHz 2-port Vector Network Analyzer offering exceptional measurement accuracy and speed, perfect for both R&D and production environments. With a wide dynamic range and precise S-parameter measurements, it ensures consistent performance across applications. The compact design integrates touch-screen control and intuitive interface for seamless operation.
Ideal for characterizing RF components, antennas, and modules, the ZNL6 supports various test scenarios with high repeatability and ease. Its high-resolution display and flexible connectivity enhance user efficiency.
Testwall can supply the used Rohde & Schwarz ZNL6 6GHz 2 Port Vector Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZNL6 6GHz 2 Port Vector Network Analyzer.
