Rohde & Schwarz ZV-Z135
| Attribute | Value |
|---|---|
| Frequency Range | DC to 9 GHz |
| Impedance | 50 Ω |
| Connector Type | 3.5 mm (f) to N (f) |
| VSWR | ≤ 1.15 (DC to 3 GHz), ≤ 1.25 (3 GHz to 9 GHz) |
| Insertion Loss | ≤ 0.1 dB (DC to 3 GHz), ≤ 0.2 dB (3 GHz to 9 GHz) |
| Maximum Input Power | 0.5 W (average), 1 W (peak) |
| Operating Temperature Range | 0 °C to +55 °C |
| Storage Temperature Range | -40 °C to +75 °C |
| Compatible Instruments | Rohde & Schwarz Vector Network Analyzers (ZVA, ZVB, ZVL series) |
| Application | Adapter for connecting 3.5 mm and N-type components during RF/microwave measurements |
| Model | ZV-Z135 |
|---|

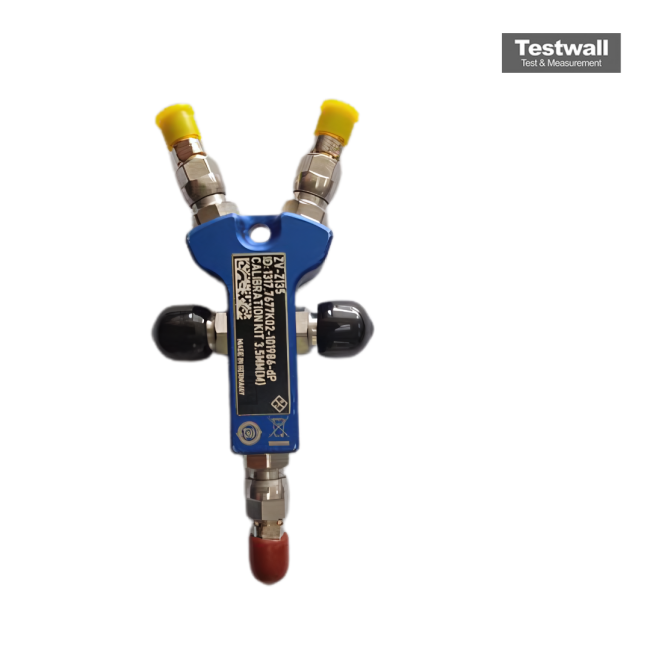

The Rohde & Schwarz ZV-Z135 Calibration Kit (1317.7677.03) supports frequency ranges from 0 Hz to 15 GHz and is equipped with 3.5mm female connectors. This kit is essential for accurate vector network analyzer calibration, ensuring precision in RF and microwave measurements across a broad spectrum range.
Engineered for professional calibration procedures, the ZV-Z135 provides reliable standards to support testing in demanding lab and field environments.
Testwall can supply the used Rohde & Schwarz ZV-Z135, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZV-Z135.
