Rohde & Schwarz ZV-Z54
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 8 GHz |
| Connector Type | 3.5 mm (f) / SMA |
| Impedance | 50 Ω |
| Calibration Kit Type | Mechanical Calibration Kit |
| Compatible Instruments | Rohde & Schwarz Vector Network Analyzers (ZVA, ZVB, ZVL series) |
| Standards Included | Open, Short, Match, Through (OSMT) |
| Calibration Method | TOSM (Through-Open-Short-Match) |
| Connector Gender | Female (f) |
| Return Loss (Match Standard) | > 46 dB |
| Operating Temperature | 0 °C to +55 °C |
| Model | ZV-Z54 |
|---|

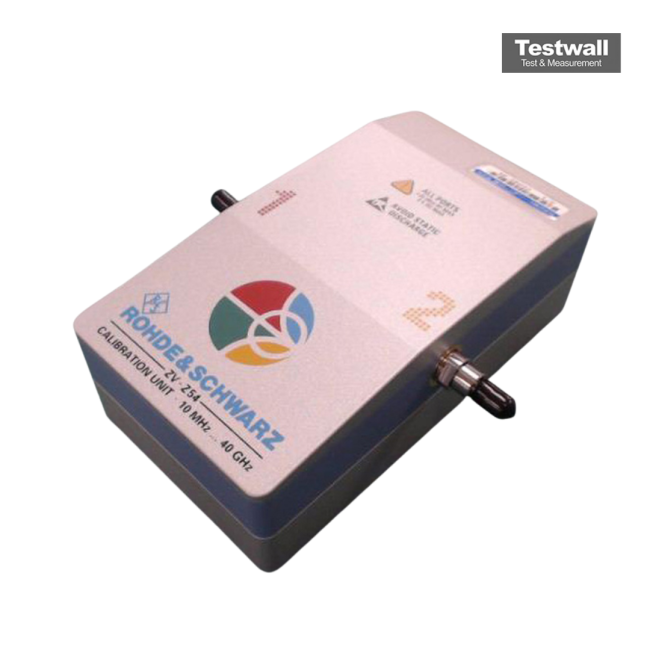

The Rohde & Schwarz ZV-Z54 is a 2-port electronic calibration kit designed for high-frequency vector network analyzers, operating from 10 MHz to 40 GHz with 2.92mm connectors. It ensures precise calibration over wide frequency ranges, minimizing measurement uncertainties and maximizing repeatability. This high-performance tool supports advanced testing environments with superior RF accuracy and consistency.
Ideal for high-frequency network analyzer applications, the ZV-Z54 provides accurate S-parameter calibration for both research and production environments. Its robust design supports long-term reliability.
Testwall can supply the used Rohde & Schwarz ZV-Z54, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZV-Z54.
