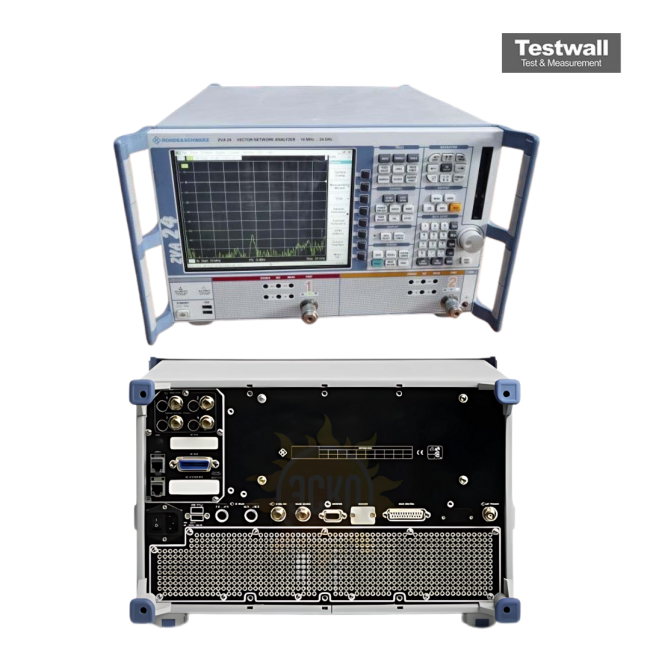

Rohde & Schwarz ZVA24
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 24 GHz |
| Number of Test Ports | 2 or 4 ports |
| Dynamic Range | Up to 135 dB |
| Output Power Range | -30 dBm to +10 dBm |
| Measurement Speed | Up to 32 ms per sweep (601 points) |
| Port Connector Type | 3.5 mm (f) / 2.92 mm compatible |
| Trace Noise | <0.004 dB RMS at 10 Hz IF bandwidth |
| IF Bandwidth | 1 Hz to 500 kHz |
| Operating System | Windows XP Embedded |
| Power Supply | 100 V to 240 V AC, 50/60 Hz |
Rohde & Schwarz ZVA24 Options:
- ZVA24 - B16 - Direct Generator/Receiver Access (two ports)
- ZVA24 - B16 - Direct Generator/Receiver Access (four ports)
- ZVA24 - B21 - Generator Step Attenuator Port 1
- ZVA24 - B22 - Generator Step Attenuator Port 2
- ZVA24 - B23 - Generator Step Attenuator Port 3 (four port models only)
- ZVA24 - B24 - Generator Step Attenuator Port 4 (four port models only)
- ZVA24 - B31 - Receiver Step Attenuator Port 1
- ZVA24 - B32 - Receiver Step Attenuator Port 2
- ZVA24 - B33 - Receiver Step Attenuator Port 3 (four port models only)
- ZVA24 - B34 - Receiver Step Attenuator Port 4 (four port models only)
- ZVA24 - ZVAB-B4 - Oven Quartz (OCXO)
- ZVA24 - ZVAB-K2 - Time Domain
- ZVA24 - ZVA-K4 - Frequency Conversion
| Model | ZVA24 |
|---|
The Rohde & Schwarz ZVA24 is a high-performance 4-port vector network analyzer designed for linear and nonlinear amplifier and mixer measurements across a frequency range of 10 MHz to 24 GHz. It supports pulse profile measurements with 12.5 ns resolution, true differential measurements, and phase/group delay measurements with or without LO access. With output power >18 dBm, dynamic range >140 dB, and measurement speed <3.5 µs per point, it ensures precision and efficiency.
This analyzer is ideal for characterizing active devices with balanced ports and supports versatile calibration methods including TOSM, TRL/LRL, TOM, TRM, TNA, and UOSM, along with automatic calibration units and wide IF bandwidth options of 1/5/30 MHz.
Testwall can supply the used Rohde & Schwarz ZVA24, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZVA24.
