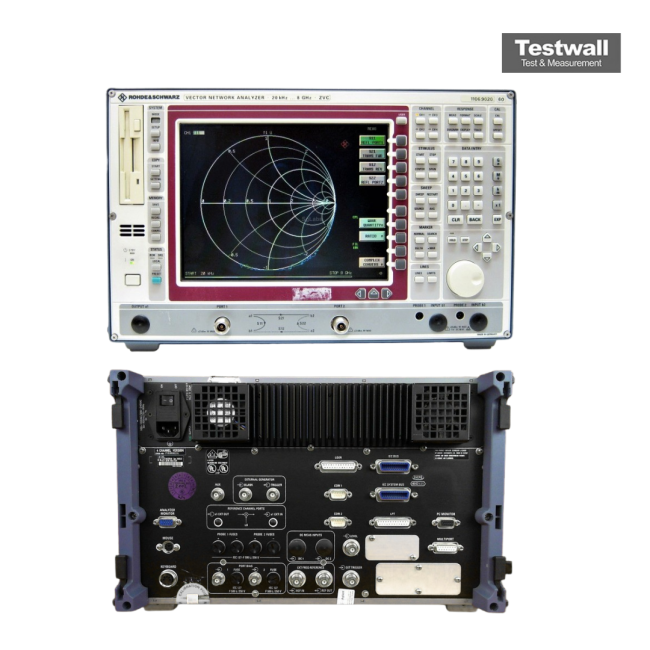

Rohde & Schwarz ZVC
| Attribute | Value |
|---|---|
| Frequency Range | 20 kHz to 3 GHz |
| Number of Test Ports | 2 |
| Dynamic Range | Up to 120 dB |
| Output Power Range | -60 dBm to +10 dBm |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, and group delay |
| Sweep Types | Linear frequency, logarithmic frequency, power, and CW time sweeps |
| IF Bandwidth | 1 Hz to 30 kHz |
| Connector Type | N-type 50 Ohm test ports |
| Display | 10.4-inch color TFT LCD display |
| Interface/Connectivity | GPIB, RS-232, and parallel port interfaces for remote control and data transfer |
Rohde & Schwarz ZVC Options:
- ZVC - ZVR-B1 - Automatic Calibration AutoKal (0 Hz to 8 GHz)
- ZVC - ZVR-B2 - Time Domain
- ZVC - ZVR-B4 - Mixer Measurements (includes harmonics measurements)
- ZVC - ZVR-B5 - Nonlinear Measurements
- ZVC - ZVR-B6 - Reference Channel Ports
- ZVC - ZVR-B7 - Power Calibration (power meter and sensor required)
- ZVC - ZVR-B8 - 3-Port Adapter (0 Hz to 4 GHz)
- ZVC - ZVR-K9 - Virtual Embedding Networks
- ZVC - ZVR-B10 - Increased Output Power for Port 1 or Output a1
- ZVC - ZVR-B14 - 4-Port Adapter (2 x SPDT, 0 Hz to 4 GHz)
- ZVC - ZVR-B14 - 4-Port Adapter (SP3T, 0 Hz to 4 GHz)
- ZVC - FSE-B16 - Ethernet RJ45 for Internal PC
- ZVC - FSE-B17 - IEC/IEEE Bus Interface for Internal PC
- ZVC - ZVR-B21 - Generator Step Attenuator PORT 1
- ZVC - ZVR-B22 - Generator Step Attenuator PORT 2
- ZVC - ZVR-B23 - Receiver Step Attenuator PORT 1
- ZVC - ZVR-B24 - Receiver Step Attenuator PORT 2
- ZVC - ZVR-B25 - External Measurements, 50 Ω (20 kHz to 8 GHz)
- ZVC - ZVR-Z1 - Service Kit
| Model | ZVC |
|---|
The Rohde & Schwarz ZVC Vector Network Analyzer operates across 20kHz to 8GHz, offering advanced versatility, precision, and speed. It includes integrated generators, test sets, and receivers, with two SWR bridges, RF switches, and dual reference and measurement channels for full two-port calibration and accurate S-parameter measurements.
Ideal for R&D and production, the ZVC supports innovative calibration techniques like TNA, particularly enhancing accuracy for noncoaxial applications and complex measurement setups.
Testwall can supply the used Rohde & Schwarz ZVC, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZVC.
