Rohde & Schwarz ZVH8 Cable & Antenna Analyser
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 8 GHz |
| Measurement Modes | Cable & Antenna Analysis, Spectrum Analysis, Power Meter, Distance-to-Fault (DTF) |
| Dynamic Range | Up to 80 dB |
| Return Loss Measurement Range | 0 dB to 60 dB |
| Display | 6.5-inch color TFT touchscreen, 640 x 480 pixels |
| Battery Life | Up to 3 hours with internal Li-Ion battery pack |
| RF Connector | N-type female, 50 Ω |
| Weight | Approximately 2.9 kg (6.4 lbs) including battery |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Data Storage & Connectivity | USB, LAN (Ethernet), internal memory for trace and configuration storage |
Rohde & Schwarz ZVH8 Cable & Antenna Analyser Options:
- ZVH8 - K1 - Spectrum Analysis
- ZVH8 - K9 - Power Meter
- ZVH8 - K14 - Spectrogram Measurement Application
- ZVH8 - K19 - Channel Power Meter
- ZVH8 - K39 - Transmission Measurement for Cable and Antenna Mode
- ZVH8 - K40 - Remote Control via LAN or USB
- ZVH8 - K42 - Vector Network Analysis
- ZVH8 - K45 - Vector Voltmeter
| Model | ZVH8 |
|---|

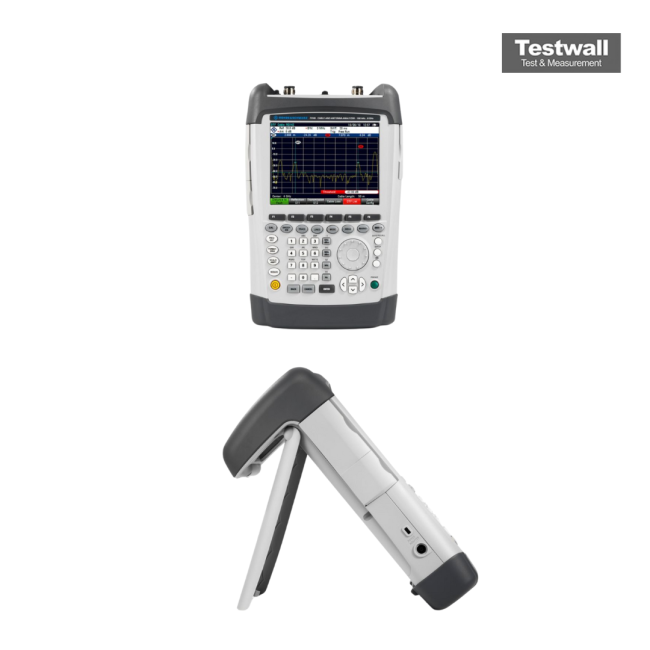

The Rohde & Schwarz ZVH8 Handheld Cable and Antenna Analyzer operates from 100 kHz to 3.6 GHz / 8 GHz, featuring a 100 dB dynamic range for precise transmission measurements. Its rugged, splash-proof design is ideal for demanding field conditions.
With remote control via free software/app and quick setup using a configuration wizard, it's optimized for fast antenna installation and maintenance.
Testwall can supply the used Rohde & Schwarz ZVH8 Handheld Cable and Antenna Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZVH8 Handheld Cable and Antenna Analyzer.
