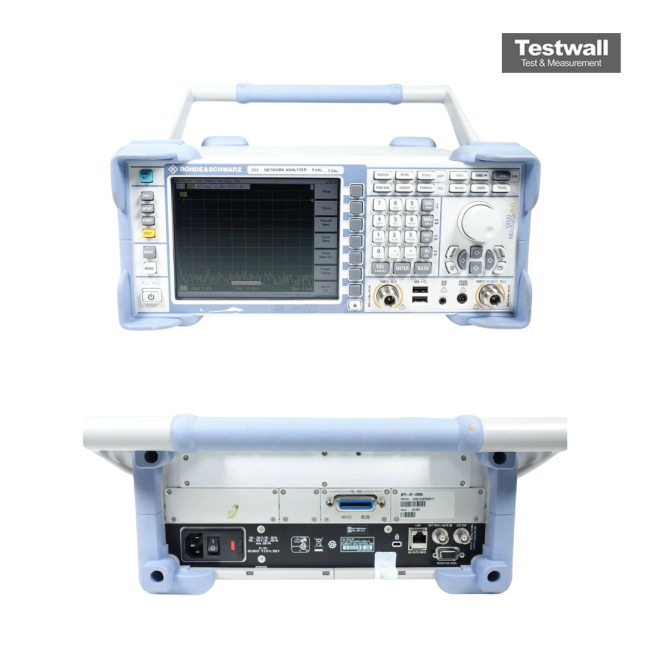

Rohde & Schwarz ZVL3-75 Vector Network Analyser
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 3 GHz |
| Waveguide Band | 75 GHz (WR-15 waveguide interface via external frequency extension) |
| Dynamic Range | Up to 120 dB |
| Output Power Range | -55 dBm to 0 dBm |
| Measurement Points per Sweep | Up to 1601 points |
| Port Impedance | 50 Ohm |
| Number of Test Ports | 2 |
| Display | 7-inch color LCD touchscreen (800 x 480 pixels) |
| Interface Connectivity | USB, LAN (Ethernet), GPIB (optional) |
| Power Supply | 100 V to 240 V AC, 50 Hz to 60 Hz |
Rohde & Schwarz ZVL3-75 Vector Network Analyser Options:
- ZVL3-75 - R&S FSL-B4 - OCXO Reference Frequency
- ZVL3-75 - R&S FSL-B5 - Additional Interfaces
- ZVL3-75 - R&S FSL-B6 - TV Trigger
- ZVL3-75 - R&S FSL-B7 - Narrow Resolution Filters
- ZVL3-75 - R&S FSL-B8 - Gated Sweep
- ZVL3-75 - R&S FSL-B10 - GPIB Interface
- ZVL3-75 - R&S FSL-B22 - RF Preamplifier (3GHz/6GHz)
- ZVL3-75 - R&S FSL-B30 - DC Power Supply
- ZVL3-75 - R&S FSL-B31 - NiMH Battery Pack 4.5 Ah
- ZVL3-75 - R&S ETL-B235 - Li-Ion Battery Pack 10 Ah with Battery Charger
- ZVL3-75 - R&S FSL-K9 - Power Sensor Support
- ZVL3-75 - R&S ZVL-K1 - Spectrum Analysis
- ZVL3-75 - R&S ZVL-K2 - Distance-to-Fault Measurement
- ZVL3-75 - R&S ZVL-K3 - Time Domain
- ZVL3-75 - R&S FSL-K7 - AM/FM/φM Measurement Demodulator
- ZVL3-75 - R&S FSL-K14 - Spectrogram Measurements
- ZVL3-75 - R&S FSL-K20 - Cable TV and TV Measurements
| Model | ZVL3-75 |
|---|
The Rohde & Schwarz ZVL3-75 is a high-performance 75 Ω vector network and spectrum analyzer, offering a frequency range from 9 kHz to 3 GHz. With dynamic range exceeding 115 dB and a built-in test set for S-parameters, it’s ideal for testing both active and passive devices. Lightweight (<7 kg) with LAN/USB connectivity and optional IEEE and battery support.
Ideal for field or lab use, the ZVL3-75 combines advanced features in a compact, portable form with optional spectrum analysis and battery operation.
Testwall can supply the used Rohde & Schwarz ZVL3-75, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZVL3-75.
