Rohde & Schwarz ZVRE
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 4 GHz |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, and other derived parameters |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -60 dBm to +10 dBm |
| Number of Test Ports | 2 |
| Impedance | 50 Ohm |
| Number of Sweep Points | Up to 1601 points per sweep |
| IF Bandwidth | 10 Hz to 30 kHz |
| Connector Type | N-type female (50 Ohm) test port connectors |
| Display | 10.4-inch color TFT LCD display |
Rohde & Schwarz ZVRE Options:
- ZVRE - ZVR-B1 - Automatic Calibration AutoKal (0 Hz to 8 GHz)
- ZVRE - ZVR-B2 - Time Domain
- ZVRE - ZVR-B4 - Mixer Measurements (includes harmonics measurements)
- ZVRE - ZVR-B5 - Nonlinear Measurements
- ZVRE - ZVR-B6 - Reference Channel Ports
- ZVRE - ZVR-B7 - Power Calibration (power meter and sensor required)
- ZVRE - ZVR-B8 - 3-Port Adapter (0 Hz to 4 GHz)
- ZVRE - ZVR-B10 - Increased Output Power for Port 1 or Output a1
- ZVRE - ZVR-B14 - 4-Port Adapter (0 Hz to 4 GHz)
- ZVRE - FSE-B16 - Ethernet RJ 45 for Internal PC
- ZVRE - FSE-B17 - IEC/IEEE Bus Interface for Internal PC
- ZVRE - ZVR-B21 - Generator Step Attenuator PORT 1
- ZVRE - ZVR-B23 - Receiver Step Attenuator PORT 1
- ZVRE - ZVR-B24 - Receiver Step Attenuator PORT 2
- ZVRE - ZVR-B25 - External Measurements, 50 Ω (10 Hz to 4 GHz)
- ZVRE - ZVR-A75 - 75 Ω Passive Bridge Pairs (9 kHz to 4 GHz, instead of 50 Ω bridge pairs)
- ZVRE - ZVR-A76 - 75 Ω Active Bridge Pairs (300 kHz to 4 GHz, instead of 50 Ω bridge pairs)
- ZVRE - ZVR-Z1 - Service Kit
| Model | ZVRE |
|---|

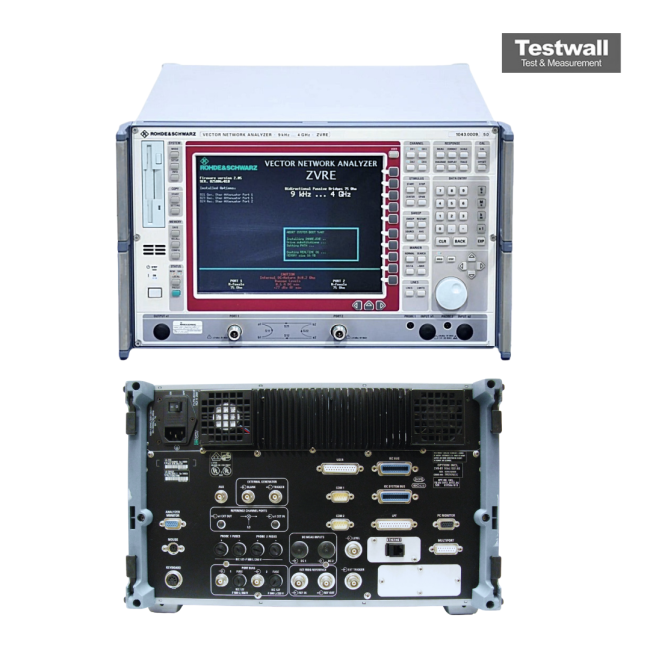

The Rohde & Schwarz ZVRE Vector Network Analyzer offers a frequency range from 9kHz to 4GHz, with 10uHz resolution and a dynamic range of at least 125dB. It features Type-N female test port connectors and delivers exceptionally low inherent noise below -130dBm. The ZVRE integrates generator, receiver, and a test set with high measurement precision.
It measures all four S-parameters of a DUT, supports full two-port TOSM calibration, and is ideal for versatile applications in R&D and production environments.
Testwall can supply the used Rohde & Schwarz ZVRE, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZVRE.
