Schaffner CDN 110
| Attribute | Value |
|---|---|
| Frequency Range | 0.15 MHz – 80 MHz |
| Impedance | 150 Ω (50 Ω + 100 Ω) |
| Maximum Current | 16 A |
| Maximum Voltage | 250 V AC |
| Number of Lines | 1-line (Single Line CDN) |
| Applicable Standard | IEC 61000-4-6 |
| Connector Type | N-Type RF Connector |
| Insertion Loss | ≤ 1 dB |
| Common Mode Impedance | 150 Ω ± 20 Ω (0.15–26 MHz), 150 Ω ± 60 Ω (26–80 MHz) |
| Operating Temperature | 0°C to +55°C |
| Model | CDN 110 |
|---|

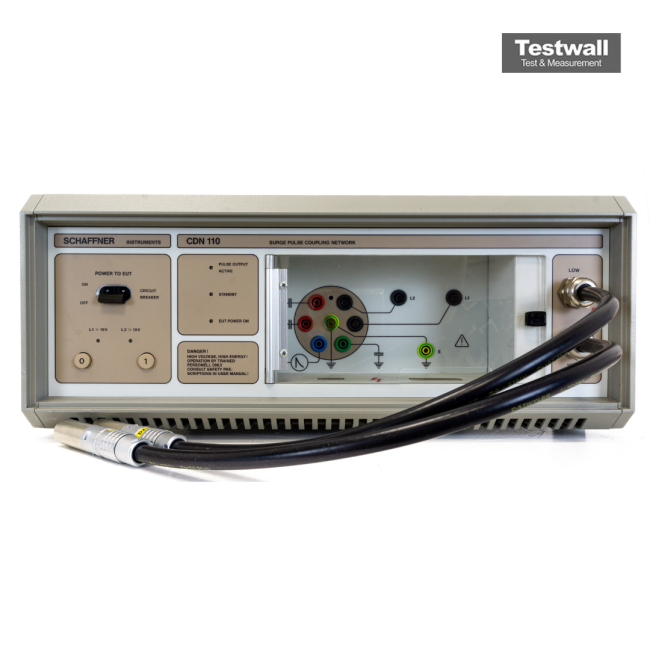

The Schaffner CDN 110 is a single‑phase surge coupling/decoupling network designed for precise testing of equipment under surge conditions. It couples pulses from the NSG 651 generator into the single‑phase mains supply, supporting voltages up to 420 Vac rms and currents up to 16 A. It conforms to IEEE‑587, ANSI‑C6245, VDE 0109, and IEC 801‑5, delivering pulses of up to 6.6 kV and surges up to 3 kA with integrated safety interlocks.
This coupling network is ideal for instrument and system surge immunity testing. Seamless integration with the NSG 651 ensures reliable performance under international compliance standards and simplifies test setup.
Testwall can supply the used Schaffner CDN 110, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Schaffner CDN 110.
