Schaffner CDN125
| Attribute | Value |
|---|---|
| Frequency Range | 0.15 MHz – 80 MHz |
| Impedance | 150 Ω (50 Ω + 100 Ω) per CISPR 16-1-2 |
| Maximum Continuous Current | 25 A |
| Maximum Voltage | 250 V AC |
| Number of Lines | 1-line (single-line CDN) |
| Connector Type | N-type RF connector for measurement port |
| Applicable Standard | CISPR 16-1-2, IEC 61000-4-6 |
| Insertion Loss | ≥ 20 dB (isolation between EUT port and auxiliary equipment port) |
| Operating Temperature | 0 °C to +55 °C |
| Application | Conducted disturbance measurements and conducted immunity testing on unshielded lines |
| Model | CDN125 |
|---|

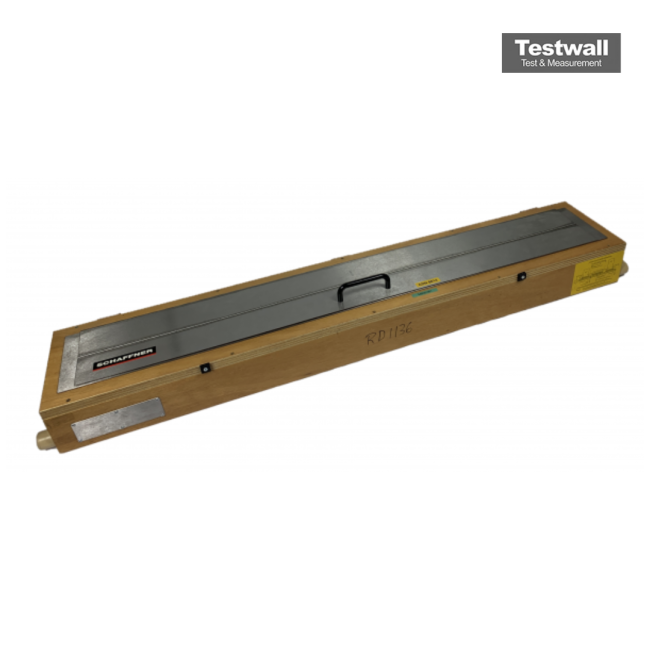

The Schaffner CDN125 Capacitive Coupling Clamp is designed to meet IEC 1000-4-4 / 801-4 standards, providing precise burst pulse and fast transient injection capabilities. It enables accurate testing across signal, data, AC line, and DC power supply cables, ensuring compliance and robust performance evaluation.
Ideal for laboratory and compliance environments, the CDN125 ensures repeatable and reliable transient coupling for EMC testing applications.
Testwall can supply the used Schaffner CDN125 Capacitive Coupling Clamp, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Schaffner CDN125 Capacitive Coupling Clamp.
