Schaffner NSG 224A
| Attribute | Value |
|---|---|
| Pulse Standards Compliance | ISO 7637-2, ISO 7637-3 |
| Voltage Range | Up to 600 V peak |
| Pulse Types | Pulses 1, 2a, 2b, 3a, 3b, 4, 5a, 5b |
| Supply Voltage | 100 – 240 VAC, 50/60 Hz |
| Output Impedance | 0.5 Ω to 100 Ω (pulse dependent) |
| DUT Supply Voltage | 6 V, 12 V, 24 V selectable |
| Maximum DUT Current | 20 A continuous |
| Coupling/Decoupling Network | Integrated CDN for direct DUT connection |
| Control Interface | IEEE 488 (GPIB) and RS-232 |
| Operating Temperature | 0 °C to 40 °C |
| Model | NSG |
|---|

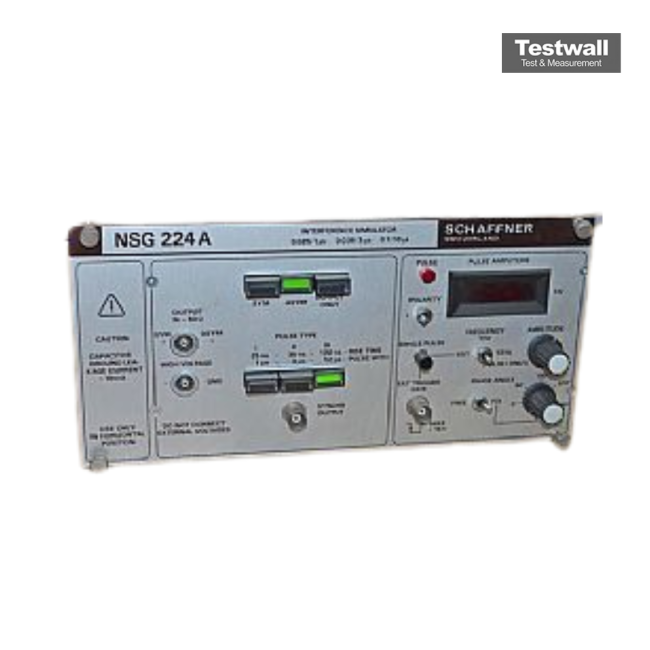

The Schaffner NSG-224A is a modular disturbance simulator mainframe engineered for the NSG-200 series, delivering core functionality such as power handling, line filtering, overload protection, and phase indication in a rack-mountable, rugged design. This versatile unit allows users to install multiple disturbance generator plug-ins for tailored EMC test setups, providing robust performance in continuous-use laboratory and ...
This unit is ideal for laboratories and research centers requiring precise disturbance simulation and adaptability. By accepting various plug-in modules, it expands testing capabilities while maintaining consistent accuracy and protection.
Testwall can supply the used Schaffner NSG-224A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Schaffner NSG-224A.
