Schaffner NSG 650
| Attribute | Value |
|---|---|
| Output Voltage Range | Up to 7.5 kV peak |
| Output Current | Up to 150 A peak |
| Pulse Rise Time | Less than 5 ns |
| Applicable Standards | IEC 61000-4-2, ISO 10605 |
| ESD Test Modes | Contact discharge and air discharge |
| Pulse Repetition Rate | Up to 20 pulses per second |
| Energy Storage Capacitance | 150 pF (IEC), 150/330 pF (ISO) |
| Discharge Network Resistance | 330 Ω (IEC), 2000 Ω (ISO) |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Operating Temperature Range | 15°C to 35°C (59°F to 95°F) |
| Model | NSG 650 |
|---|

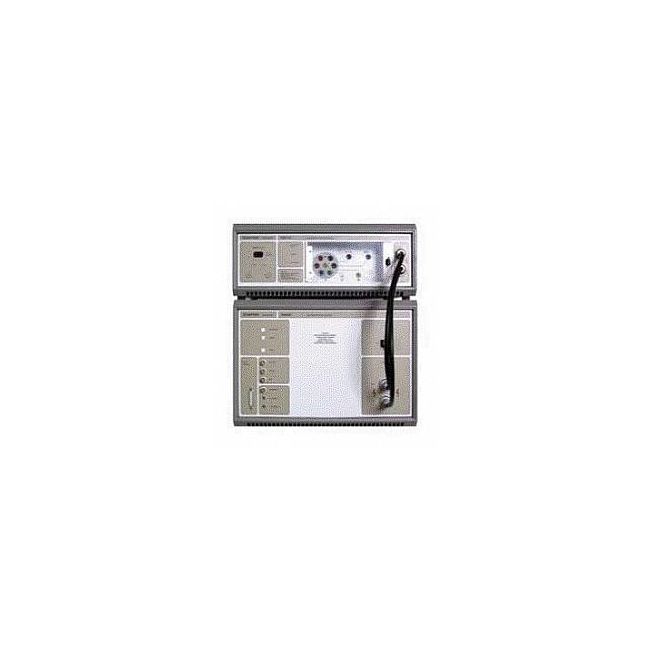

The Schaffner NSG 650 High Energy Pulse Generator produces hybrid pulses with 1.2/50 µs (open circuit), 8/20 µs (short circuit), and 0.5 µs/100 kHz ring wave at levels above 6kV/500A. Compliant with IEC 801-5, ANSI-IEEE C62.41, IEEE 587, and VDE 0109 standards, this unit offers floating output, full computer control, operating software, and automatic sequence programming.
Ideal for surge and ring wave testing, the NSG 650 integrates easily into existing computer environments or can be operated via IBM XT/AT compatible PCs, providing flexibility and accuracy in EMC testing.
Testwall can supply the used Schaffner NSG 650, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Schaffner NSG 650.
