Schaffner NSG1025
| Attribute | Value |
|---|---|
| Output Voltage Range | Up to 4,400 V peak |
| Output Current Range | Up to 220 A peak |
| Frequency Range | 15 Hz – 400 Hz |
| Power Output | Up to 3,000 VA |
| Waveform Types | Sinusoidal, burst, and transient waveforms |
| Standards Compliance | IEC 61000-4-13, IEC 61000-4-14, IEC 61000-4-28 |
| Input Voltage | 115/230 V AC, 50/60 Hz |
| Control Interface | IEEE 488 (GPIB) and RS-232 remote control |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions (W x H x D) | Approximately 430 mm x 177 mm x 500 mm (19" rack-mountable) |
| Model | NSG1025 |
|---|

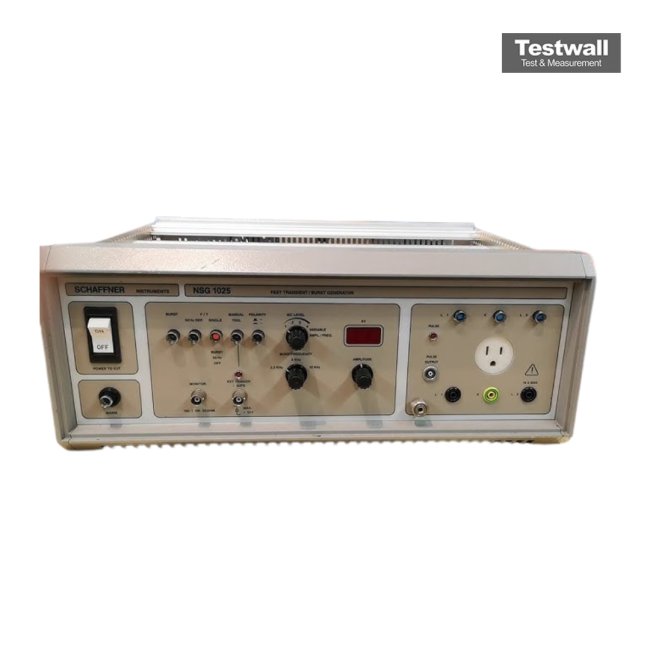

The Schaffner NSG1025 Fast Transient Burst Generator is designed to meet IEC 801-4 and IEC 1000-4-4 standards, delivering test voltages up to 4400V with burst frequencies reaching 10kHz. It also features a single pulse capability and an integrated coupling network, ensuring precise and reliable transient burst testing across a wide range of applications.
This generator is ideal for evaluating immunity performance of electrical and electronic equipment under fast transient conditions. Its high-voltage capacity and frequency flexibility make it suitable for both development and compliance testing scenarios.
Testwall can supply the used Schaffner NSG1025 Fast Transient Burst Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Schaffner NSG1025 Fast Transient Burst Generator.
