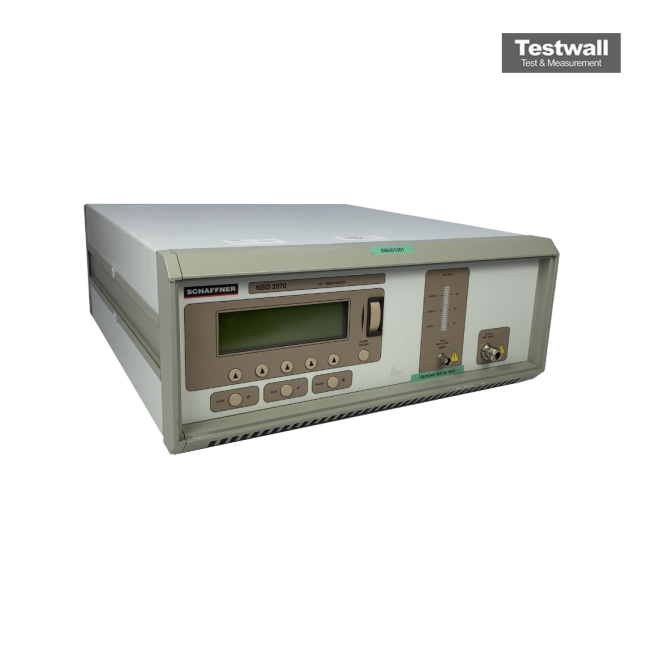

Schaffner NSG2070
| Attribute | Value |
|---|---|
| Output Voltage Range | Up to 4.4 kV peak |
| Pulse Waveform | 5/50 ns (EFT/Burst per IEC 61000-4-4) |
| Repetition Rate | 1 Hz to 1 MHz |
| Burst Duration | 0.75 ms (50/60 Hz synchronized) |
| Coupling Method | Capacitive coupling clamp and direct coupling |
| Compliance Standards | IEC 61000-4-4, EN 61000-4-4 |
| Output Impedance | 50 Ω |
| Power Supply Input | 100–240 V AC, 50/60 Hz |
| Interface / Control | USB and RS-232 remote control interface |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Model | NSG2070 |
|---|
The Schaffner NSG2070 is a self-contained RF immunity test system designed for IEC 61000-4-6 compliance. It integrates a 100 kHz–250 MHz synthesizer, 85 W power amplifier, two-channel power meter, and WIN 2070 software for remote automation. Its intuitive LCD interface enables seamless execution of standard and custom test profiles.
With automatic self-calibration, built-in safety interlocks, and versatile coupling options like CDNs, clamps, and probes, the NSG2070 ensures reliable and flexible RF testing across diverse environments.
Testwall can supply the used Schaffner NSG2070, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Schaffner NSG2070.
