Solmetric PVA-1000S
| Manufacturer | Solmetric |
| Model | PVA-1000S |
| Product | 1000V Photovoltaic Analyzer I-V Curve Tracer |
| Type | Used |

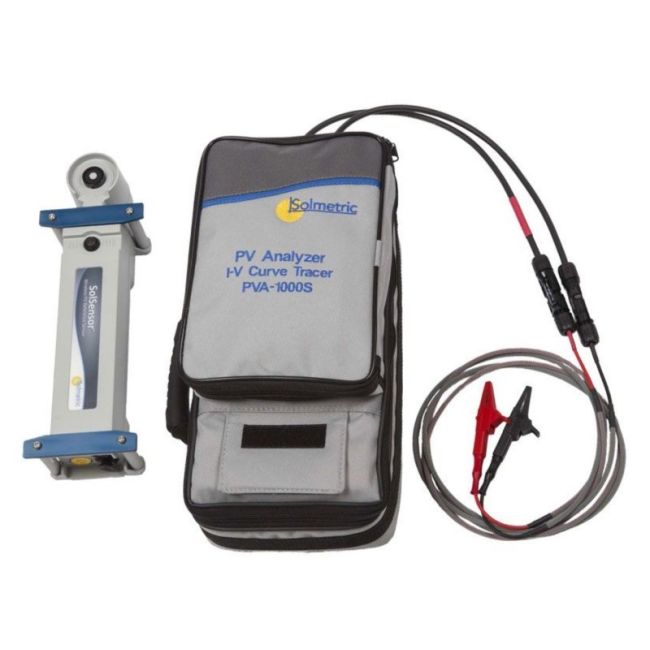

SOLMETRIC PVA-1000S PV Analyzer I-V Curve Tracer
The Solmetric PVA-1000S PV Analyzer Kit is a 1000 volt I-V curve tracer with built-in PV performance modeling and advanced wireless irradiance, temperature and tilt sensing. It provides unprecedented measurement throughput and accuracy and delivers deep insight into the performance of your arrays. For each string, the PV Analyzer measures the I-V (cur vs. voltage) and P-V (power vs. voltage) curves with a single button click. The measured results are compared to the expected performance, taking into account the irradiance and module cell temperature at the time of the I-V measurement. The I-V Unit communicates wirelessly to your Windows tablet or laptop (not included), enhancing safety and allowing freedom of movement during testing. Automated data analysis and reporting save you time.
The PV Analyzer is designed to work as hard as you do. High measurement throughput means it can measure 1 MW in less than 2 hours--even in hot environments where other curve tracers shut down. The rugged enclosure is moisture and dust resistant. The incident angle corrected SolSensor is able to make accurate irradiance readings in lower light conditions extending your working window. Populations of curves can be analyzed quickly for outliers and data can be archived as a baseline for future reference if performance questions arise.
Specifications for the SOLMETRIC PVA-1000S PV Analyzer I-V Curve Tracer Include:
| PV Voltage Range | 0 - 1000V |
| Cur Range | 0 - 20A (30A optional) |
|
I-V Sweep Duration |
0.05 - 2s, 0.2 typical for strings |
| I-V Trace Points | 100 or 500, user selectable |
Find pinched wires and leakage problems before they become dangerous with the
