Solmetric PVA-1500T
| Manufacturer | Solmetric |
| Model | PVA-1500T |
| Product | 1500V PV Analyzer I-V Curve Tracer |
| Type | Used |

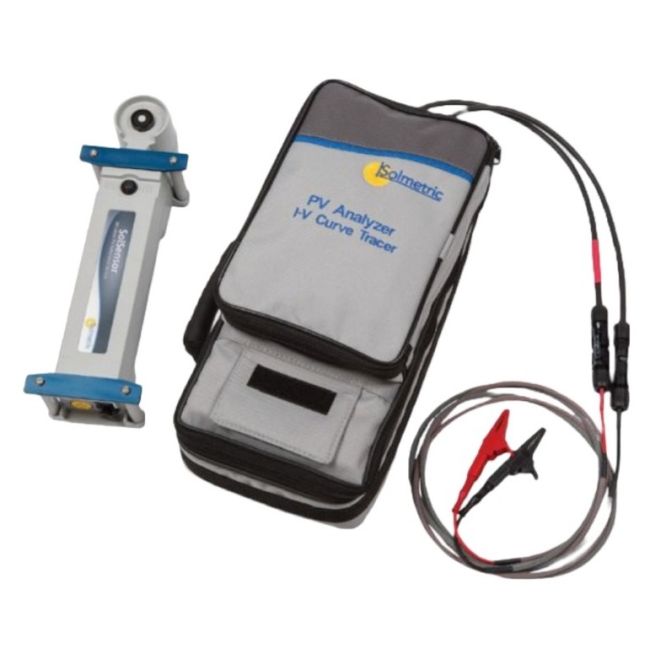

SOLMETRIC PVA-1500T PV Analyzer
The Solmetric PVA-1500T PV Analyzer Kit is a 1500 volt I-V curve tracer with built-in PV performance modeling and advanced wireless irradiance, temperature and tilt sensing. It provides unprecedented measurement throughput and accuracy and delivers deep insight into the performance of your arrays. For each string, the PV Analyzer measures the I-V (cur vs. voltage) and P-V (power vs. voltage) curves with a single button click. The measured results are compared to the expected performance, taking into account the irradiance and module cell temperature at the time of the I-V measurement.
The 'T' in the PVA-1500T stands for 'Throughput' and means 2x higher I-V measurement throughput and 2x longer run-time before cool down when compared to the PVA-1500V4 (and S, V2, and V3). Sweep-to-sweep delays are now 9 seconds in the 'T' versus 18 seconds in the older models (at Voc<1350V). The PVA-1500T can measure 3.5 MW in less than an hour--even in hot environments where other curve tracers shut down. Irradiance, module temperature, and tilt are measured with the SolSensor. The I-V Unit communicates wirelessly to the Solsensor, enhancing safety and allowing freedom of movement during testing. Automated data analysis and reporting save you time.
Specifications for the SOLMETRIC PVA-1500T PV Analyzer Include:
| Voltage Range | 20 to 1500Vdc |
| Cur Range | 0 to 30Adc |
| Sweep-to-sweep delay | <9seconds |
| Max #I-V sweeps per hour | 400sweeps/hr |
