Sorensen

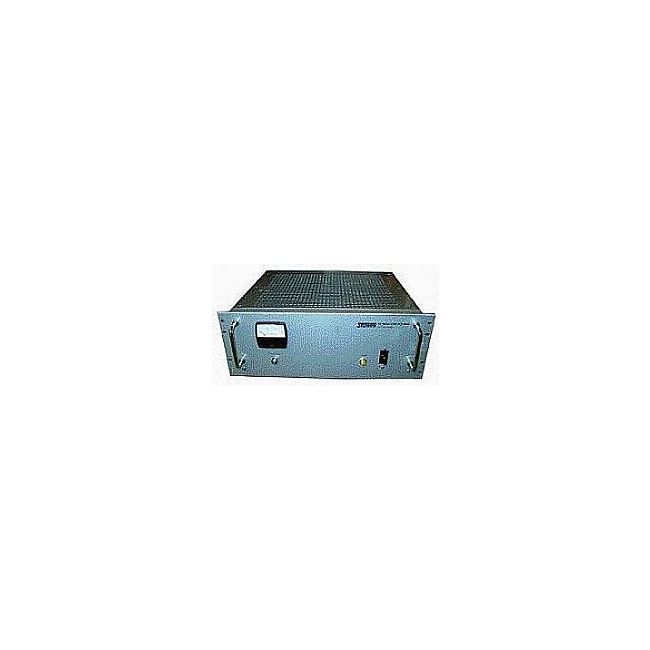

Sorensen ACR2000
AC Regulator 2000 Watts
0 – 270 VAC Output Voltage Range
Up to 2000 VA Output Current Rating
45 – 500 Hz Frequency Range
105 – 125 VAC / 210 – 250 VAC Input Voltage
2000 VA Power Rating
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 270 VAC |
| Output Current Rating | Up to 2000 VA |
| Frequency Range | 45 – 500 Hz |
| Input Voltage | 105 – 125 VAC / 210 – 250 VAC |
| Power Rating | 2000 VA |
| Waveform | Sine Wave |
| DC Output Capability | 0 – 400 VDC |
| Total Harmonic Distortion (THD) | Less than 0.5% |
| Voltage Regulation | ±0.1% of full scale |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Sorensen ACR2000 Options:
- ACR2000 - RP7 - 19" (482.6 mm) Rack Mounting Adapter (for ACR 500 only)
- ACR2000 - CSE - Cabinet Style Side Enclosures (for self-contained bench use, available for 0-3 kVA models and over)
| Model | ACR2000 |
|---|
AC Regulator, 2000 Watts, 50/60 Hz, 95 to 130 VAC, Output 110 to 120 VAC.
