Sorensen AST100-50
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 100 VDC |
| Output Current | 0 – 50 A |
| Output Power | 5000 W (5 kW) |
| Input Voltage | 208/240 VAC, Single Phase |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage) | 20 mV RMS / 100 mV p-p |
| Programming Interface | Analog (0–5V or 0–10V), RS-232, GPIB (optional) |
| Operating Temperature | 0°C to 50°C |
| Cooling Method | Fan Cooled |
Sorensen AST100-50 Options:
- AST100-50 - C - Input Voltage: 1-phase 90-145 VAC, 1-phase/3-phase 180-264 VAC
- AST100-50 - D - Input Voltage: 400 VAC, 3-phase (4-wire + Ground)
- AST100-50 - E - Front Panel: Enhanced
- AST100-50 - 1 (Interface) - GPIB Interface
- AST100-50 - 2 (Interface) - EtherCAT
- AST100-50 - 1 (Additional) - Isolated Analog Control
- AST100-50 - 5330201-01R - Rack Slides (1 pair)
- AST100-50 - 890-524-01 - Paralleling/Series Cable (2 cables required to parallel/series 2 units)
- AST100-50 - AST-Z540 - ANSI Z540 Certified Calibration
- AST100-50 - AST-17025 - ISO 17025 Certified Calibration
| Model | AST100-50 |
|---|

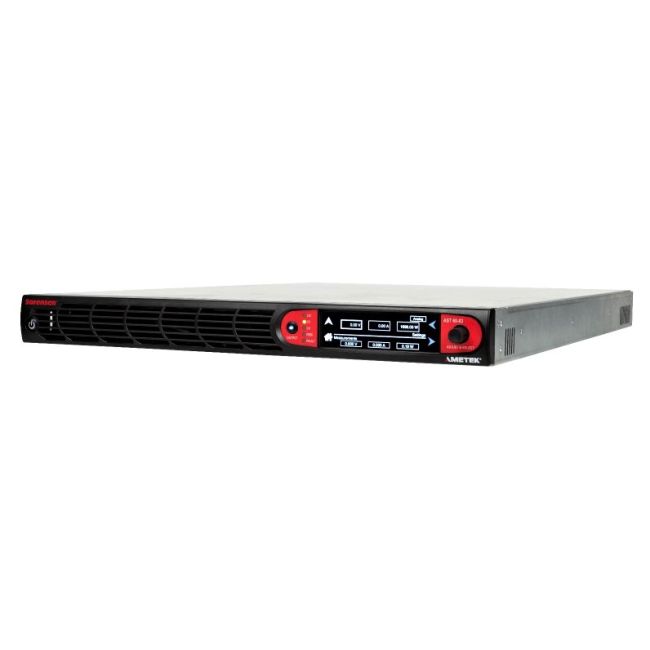

SORENSEN AST100-50 Asterion DC Power Supply
The Sorensen Asterion AST100-50 DC power supply is the newest addition to the Asterion platform of power testing solutions. These fixed range supplies are economical, traditional, rectangular wave output power supplies with all the enhanced operation advantages standard with the Asterion platform. The Sorensen AST100-50 is Digital Signal Processor (DSP) controlled and can be operated from the intuitive, easyto-use front panel touchscreen or the Ethernet LXI, USB and RS232 standard control interfaces, as well as through the optional GPIB or EtherCAT control interface.
Virtual Panels on the Sorensen AST100-50 allow remote control as well as programming communication and monitoring of the instrument without the front panel display. You can perform all operations via the remote Virtual Panels control as you could working directly with the unit's front panel. The touchscreen function group icons include a Dashboard, Output Programming Parameters, Measurements, Sequencing, Configuration, Control Interfaces, Applications, and System Settings. The Sorensen AST100-50 DC power supply is designed for testing today's complex electronics, including telecommunications and commercial electronics requiring low profile, light weight power supplies with high power density.
Specifications for the SORENSEN AST100-50 Asterion DC Power Supply Include:
| Voltage | 100V |
| Current | 50A |
| Total Power | 5000W |
| Voltage Programming Accuracy | +/- 0.1% |
