Sorensen AST200-17
| Attribute | Value |
|---|---|
| Output Voltage | 200 VDC |
| Output Current | 17 A |
| Output Power | 3400 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47–63 Hz |
| Line Regulation | 0.01% + 2 mV |
| Load Regulation | 0.01% + 2 mV |
| Ripple and Noise | 50 mV peak-to-peak |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
Sorensen AST200-17 Options:
- AST200-17 - 0 - No Interface Option
- AST200-17 - 1 - GPIB Interface
- AST200-17 - 2 - EtherCAT Interface
- AST200-17 - C - Input Voltage: 1-phase 90-145 VAC, 1-phase/3-phase 180-264 VAC
- AST200-17 - D - Input Voltage: 400 VAC, 3-phase (4-wire + Ground)
- AST200-17 - E - Enhanced Front Panel
- AST200-17 - Additional Option 0 - No Additional Option
- AST200-17 - Additional Option 1 - Isolated Analog Control
- AST200-17 - 5330201-01R - Rack Slides (1 pair)
- AST200-17 - 890-524-01 - Paralleling/Series Cable (2 cables required to parallel/series 2 units)
- AST200-17 - AST-Z540 - ANSI Z540 Certified Calibration
- AST200-17 - AST-17025 - ISO 17025 Certified Calibration
| Model | AST200-17 |
|---|

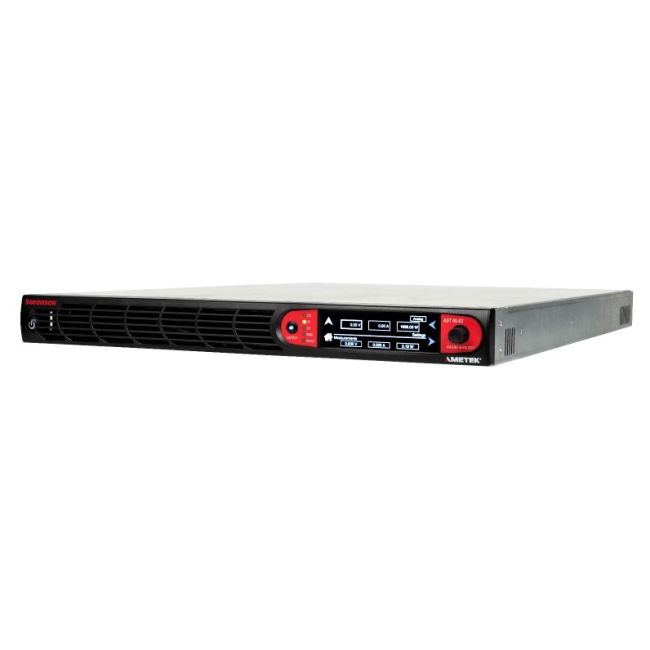

SORENSEN AST200-17 Asterion DC Power Supply
The Sorensen AST200-17 Asterion DC fixed range supplies are economical, traditional rectangular wave output power supplies with all the enhanced operation advantages standard with the Asterion platform. The touchscreen function group icons include a Dashboard, Output Programming Parameters, Measurements, Sequencing, Configuration, Control Interfaces, Applications, and System Settings. Function selection and parameter entry can be achieved either by direct selection from the touchscreen or by using the encoder selector button.
The Asterion AST200-17 DC power supply is Digital Signal Processor (DSP) controlled and can be operated from the intuitive, easyto-use front panel touchscreen or the Ethernet LXI, USB and RS232 standard control interfaces, as well as through the optional GPIB or EtherCAT control interface. Virtual Panels allow remote control as well as programming communication and monitoring of the instrument without the front panel display. You can perform all operations via the remote Virtual Panels control as you could working directly with the unit's front panel. The Sorensen AST200-17 DC power supply is designed for testing today's complex electronics, including telecommunications and commercial electronics requiring low profile, light weight power supplies with high power density.
Specifications for the SORENSEN AST200-17 Asterion DC Power Supply Include:
| Voltage | 200V |
| Current | 17A |
| Total Power | 3400W |
| Voltage Programming Accuracy | +/- 0.1% |
