Sorensen

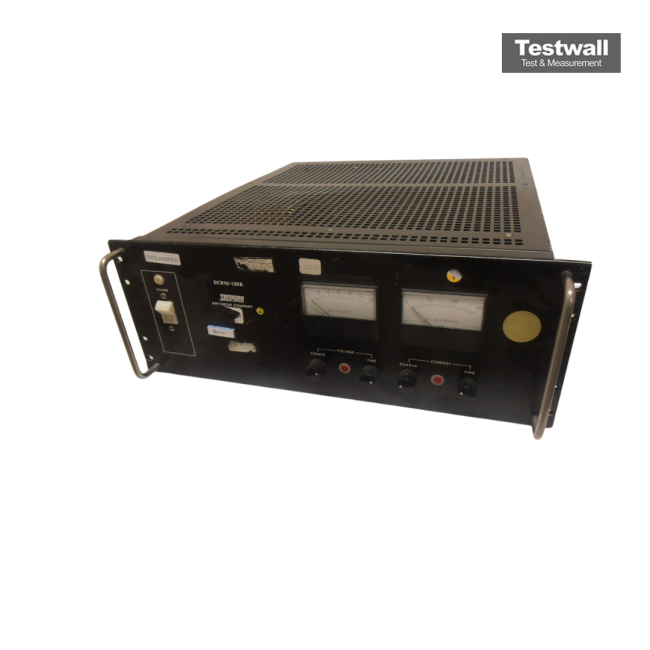

Sorensen DCR10-120B
10V-120A DC Power Supply
0 – 10 VDC Output Voltage
0 – 120 A Output Current
1200 W Output Power
100/120/220/240 VAC, Single Phase, 47–63 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 10 VDC |
| Output Current | 0 – 120 A |
| Output Power | 1200 W |
| Input Voltage | 100/120/220/240 VAC, Single Phase, 47–63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage) | 1 mV RMS / 5 mV Peak-to-Peak |
| Programming Interface | 0–5 VDC or 0–10 VDC Analog, Resistance |
| Operating Temperature | 0°C to 50°C |
| Cooling Method | Fan Cooled |
Sorensen DCR10-120B Options:
- DCR10-120B - M1 - 208 Vac ± 10% input voltage
- DCR10-120B - M2 - 220 Vac ± 10% input voltage
- DCR10-120B - M3 - 230 Vac ± 10% input voltage
- DCR10-120B - M35 - Polarity & load disconnect
- DCR10-120B - M50 - LCD digital meters
| Model | DCR10-120B |
|---|
The DCR10-120B is part of the 1800W DCR-B family of general purpose, rackmount Power supplies. It features Dual Analogue panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and optional Voltage protection (OVP).
