Sorensen

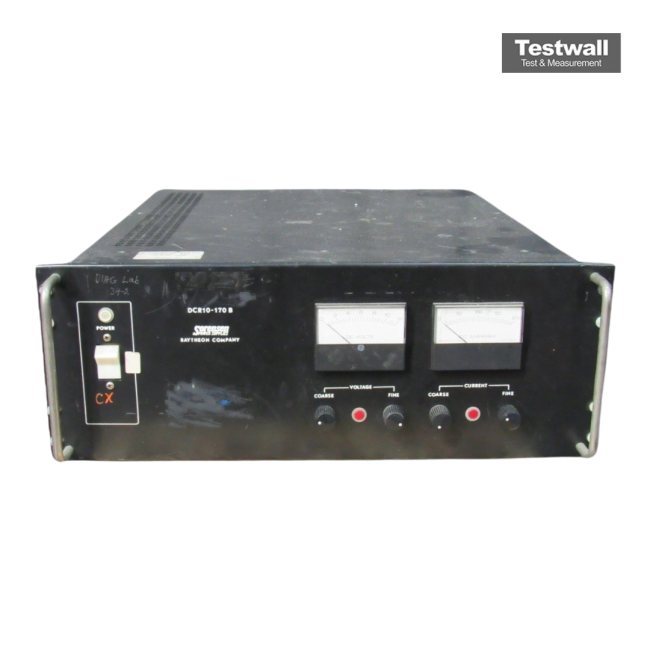

Sorensen DCR10-170B
10V-170A DC Power Supply
0 – 10 VDC Output Voltage
0 – 170 A Output Current
1700 W Output Power
105–132 VAC / 210–264 VAC, Single Phase, 50/60 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 10 VDC |
| Output Current | 0 – 170 A |
| Output Power | 1700 W |
| Input Voltage | 105–132 VAC / 210–264 VAC, Single Phase, 50/60 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 10 mV RMS |
| Programming Interface | 0–5 VDC or 0–10 VDC analog programming; optional RS-232/RS-485/GPIB |
| Operating Temperature | 0°C to 50°C |
| Cooling Method | Fan cooled (variable speed) |
Sorensen DCR10-170B Options:
- DCR10-170B - M1 - 208 Vac ± 10% input voltage
- DCR10-170B - M2 - 220 Vac ± 10% input voltage
- DCR10-170B - M3 - 230 Vac ± 10% input voltage
- DCR10-170B - M35 - Polarity & load disconnect
- DCR10-170B - M50 - LCD digital meters
| Model | DCR10-170B |
|---|
The DCR10-170B is part of the 2700W DCR-B family of general purpose, rackmount Power supplies. It features Dual Analogue panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and optional Voltage protection (OVP).
