Sorensen

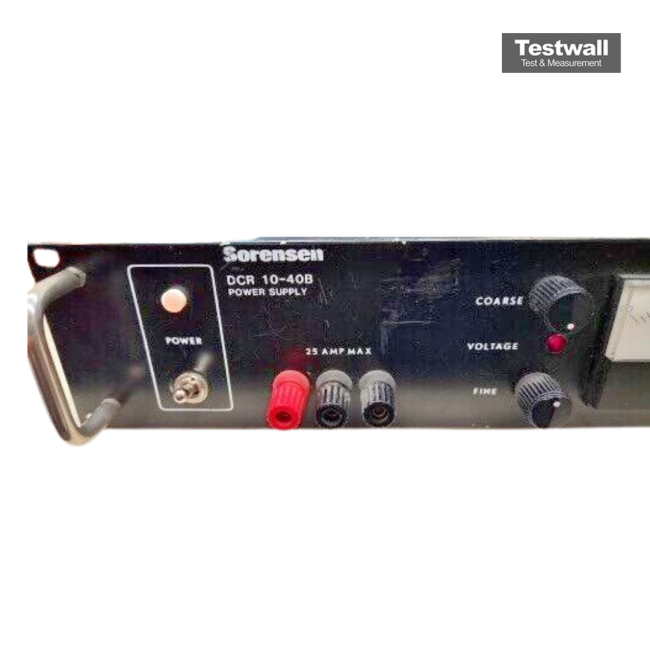

Sorensen DCR10-40B
10V-40A DC Power Supply
0 – 10 VDC Output Voltage
0 – 40 A Output Current
400 W Output Power
115/230 VAC, Single Phase, 47–63 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 10 VDC |
| Output Current | 0 – 40 A |
| Output Power | 400 W |
| Input Voltage | 115/230 VAC, Single Phase, 47–63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 1 mV RMS |
| Programming Interface | 0–5 VDC or 0–10 VDC analog control; optional RS-232/IEEE-488 |
| Operating Temperature | 0°C to 50°C |
| Form Factor / Mounting | Rack Mount, 2U (3.5 in. H × 19 in. W) |
Sorensen DCR10-40B Options:
- DCR10-40B - M1 - 208 Vac ± 10% input voltage
- DCR10-40B - M2 - 220 Vac ± 10% input voltage
- DCR10-40B - M3 - 230 Vac ± 10% input voltage
- DCR10-40B - M35 - Polarity & load disconnect
- DCR10-40B - M50 - LCD digital meters
| Model | DCR10-40B |
|---|
The DCR10-40B is part of the 500W DCR-B family of general purpose, rackmount Power supplies. It features Dual Analogue panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and over Voltage protection (OVP).
