Sorensen
Sorensen DCR150-12B
150-12A DC Power Supply
0 – 150 VDC Output Voltage
0 – 12 A Output Current
1800 W Output Power
105–132 VAC / 210–264 VAC, Single Phase, 47–63 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 150 VDC |
| Output Current | 0 – 12 A |
| Output Power | 1800 W |
| Input Voltage | 105–132 VAC / 210–264 VAC, Single Phase, 47–63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage) | 15 mV RMS / 75 mV Peak-to-Peak |
| Programming Accuracy (Voltage) | 0.1% + 150 mV |
| Operating Temperature | 0°C to 50°C |
| Remote Sensing | Up to 2V total line drop compensation |
Sorensen DCR150-12B Options:
- DCR150-12B - M1 - 208 Vac ± 10% input voltage
- DCR150-12B - M2 - 220 Vac ± 10% input voltage
- DCR150-12B - M3 - 230 Vac ± 10% input voltage
- DCR150-12B - M35 - Polarity & load disconnect
- DCR150-12B - M50 - LCD digital meters
| Model | DCR150-12B |
|---|

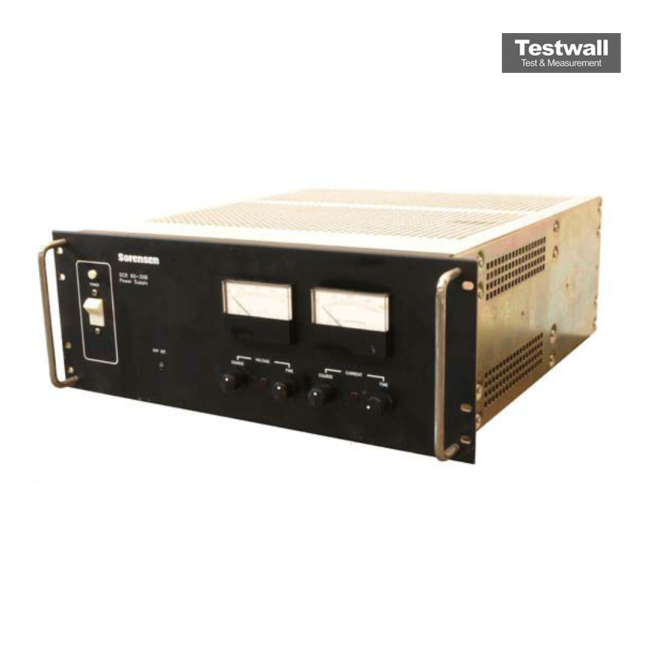

The DCR150-12B is a member of the 1800W DCR-B family of general purpose, rackmount Power supplies. It features Dual Analogue panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and optional Voltage protection (OVP).
