Sorensen

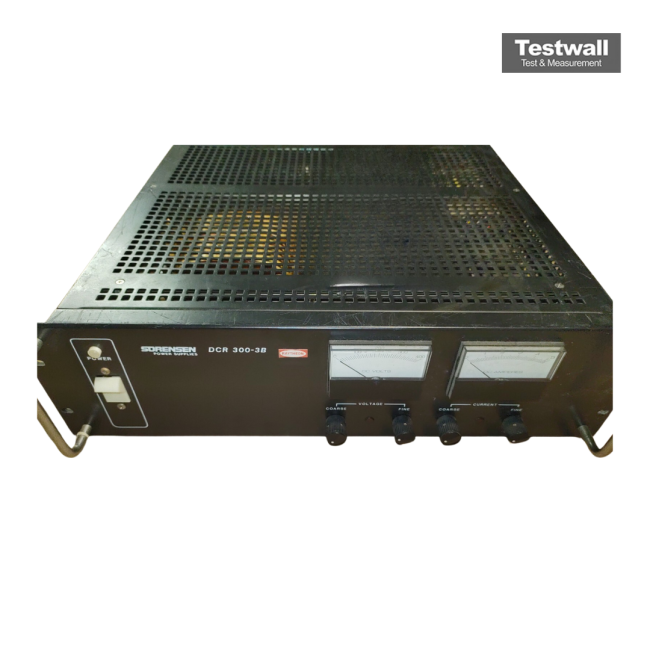

Sorensen DCR300-3B
300-3A DC Power Supply
0 – 300 VDC Output Voltage
0 – 3 A Output Current
900 W Output Power
105–125 VAC / 210–250 VAC, Single Phase, 47–63 Hz Input Voltage
0.01% + 2 mV Load Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 300 VDC |
| Output Current | 0 – 3 A |
| Output Power | 900 W |
| Input Voltage | 105–125 VAC / 210–250 VAC, Single Phase, 47–63 Hz |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Current) | 0.01% + 1 mA |
| Ripple and Noise (Voltage) | 1 mV RMS typical |
| Ripple and Noise (Current) | 2 mA RMS typical |
| Operating Temperature | 0°C to 50°C |
| Remote Sensing | Yes, included for output voltage compensation |
| Model | DCR300-3B |
|---|
The DCR300-3B is a member of the 1000W DCR-B family of general purpose, rackmount Power supplies. It features Dual Analogue panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and over Voltage protection (OVP).
