Sorensen

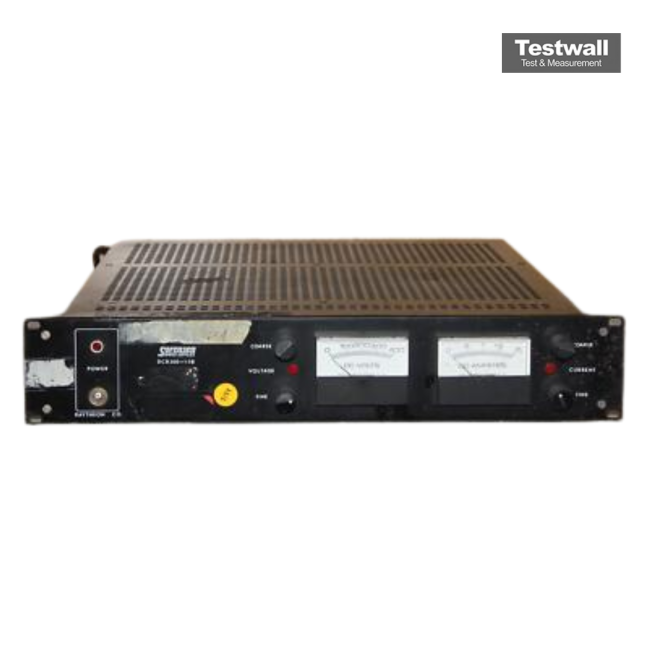

Sorensen DCR300-3B2
300-3A2 DC Power Supply
0 - 300 VDC Output Voltage
0 - 3 A Output Current
900 W Output Power
105 - 132 VAC / 210 - 264 VAC, Single Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 300 VDC |
| Output Current | 0 - 3 A |
| Output Power | 900 W |
| Input Voltage | 105 - 132 VAC / 210 - 264 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% + 2 mV |
| Load Regulation | 0.01% + 2 mV |
| Ripple and Noise | 15 mV RMS / 75 mV Peak-to-Peak |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
Sorensen DCR300-3B2 Options:
- DCR300-3B2 - M1 - Optional Input 208V
- DCR300-3B2 - M2 - Optional Input 220V
- DCR300-3B2 - M3 - Optional Input 230V
| Model | DCR300-3B2 |
|---|
The DCR300-3B2 is a member of the 1000W DCR-B2 family of general purpose, rackmount Power supplies. It features Dual Analogue panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and over Voltage protection (OVP).
