Sorensen

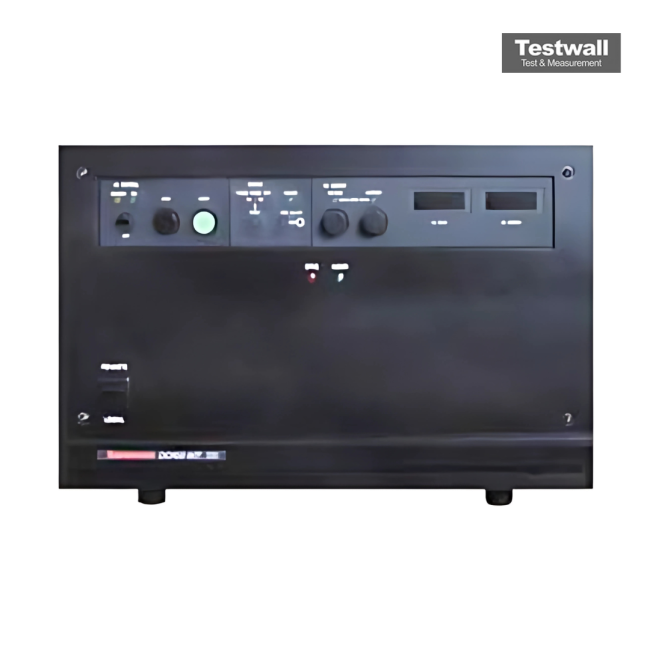

Sorensen DCR32-310T
32-310A DC Power Supply
0 - 32 VDC Output Voltage
0 - 310 A Output Current
9,920 W Output Power
208/240 VAC, 3-Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 32 VDC |
| Output Current | 0 - 310 A |
| Output Power | 9,920 W |
| Input Voltage | 208/240 VAC, 3-Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% of full scale output |
| Load Regulation | 0.01% of full scale output |
| Ripple and Noise (RMS) | 0.05% of full scale output |
| Operating Temperature | 0°C to 50°C |
| Cooling Method | Forced Air Cooling |
Sorensen DCR32-310T Options:
- DCR32-310T - T1 - 208V, 60Hz, U.S. Voltage
- DCR32-310T - T2 - 380V, 50Hz, Continental Europe Voltage
- DCR32-310T - T3 - 415V, 50Hz, British Isles Voltage
- DCR32-310T - T4 - 480V, 60Hz, U.S. Voltage
- DCR32-310T - 1060247-1 - Chassis Slides (Optional)
- DCR32-310T - 488 MICRO DAP - Interface to GPIB Bus (Digital Programmer, Optional)
- DCR32-310T - M5 - SCR Crowbar (OVP Option)
- DCR32-310T - Digital - Digital Metering (Standard)
- DCR32-310T - M52 - Analog Metering (add M52)
| Model | DCR32-310T |
|---|
The DCR32-310T is a member of the 10kW DCR-T family of 3-phase input, general purpose, rackmount Power supplies. It features Dual Digital panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and over Voltage protection
