Sorensen

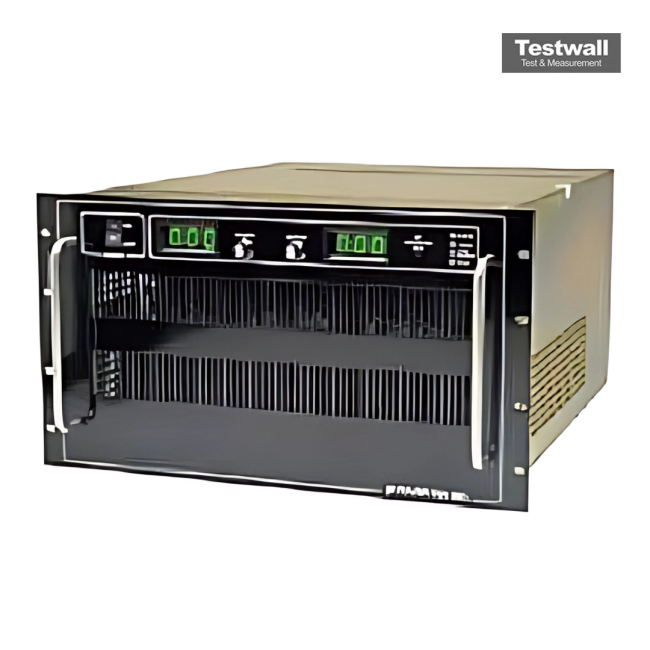

Sorensen DCR32-310T5
32-310A5 DC Power Supply
0 - 32 VDC Output Voltage
0 - 310 A Output Current
9,920 W Output Power
208/240 VAC, 3-Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 32 VDC |
| Output Current | 0 - 310 A |
| Output Power | 9,920 W |
| Input Voltage | 208/240 VAC, 3-Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 15 mV RMS |
| Programming Interface | Analog (0-5V / 0-10V), RS-232/RS-485 Optional |
| Cooling Method | Forced Air Cooling |
Sorensen DCR32-310T5 Options:
- DCR32-310T5 - T1 - STD. U.S. VOLTAGE, 208V, 60Hz
- DCR32-310T5 - T2 - STD. CONTINENTAL EUROPE VOLTAGE, 380V, 50Hz
- DCR32-310T5 - T3 - STD. BRITISH ISLES VOLTAGE, 415V, 50Hz
- DCR32-310T5 - T4 - 440 Vac ±10% @ 60Hz
- DCR32-310T5 - T5 - 480 Vac ±10% @ 60Hz
- DCR32-310T5 - 1060247-1 - Chassis Slides (Optional)
- DCR32-310T5 - 488 MICRO DAP - Digital Programmer: Interface to GPIB Bus (Optional)
- DCR32-310T5 - OVP - OVP shutdown (standard); Option: SCR crowbar M5
- DCR32-310T5 - M5 - SCR crowbar OVP option
- DCR32-310T5 - Digital - Digital Metering: Standard
- DCR32-310T5 - Analog - Analog Metering: add M52
| Model | DCR32-310T5 |
|---|
The DCR32-310T5 is a member of the 10kW DCR-T family of 3-phase input, general purpose, rackmount Power supplies. It features Dual Digital panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and over Voltage protection
