Sorensen

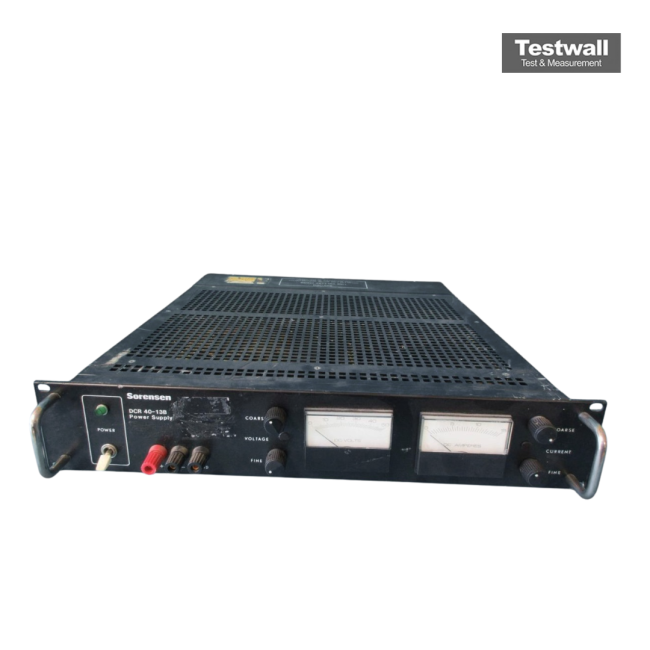

Sorensen DCR40-13B
40-13A DC Power Supply
0 - 40 VDC Output Voltage
0 - 13 A Output Current
520 W Output Power
115/230 VAC, Single Phase, 50/60 Hz Input Voltage
0.01% + 2 mV Load Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 40 VDC |
| Output Current | 0 - 13 A |
| Output Power | 520 W |
| Input Voltage | 115/230 VAC, Single Phase, 50/60 Hz |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Current) | 0.1% + 1 mA |
| Ripple and Noise (Voltage, rms) | 1 mV rms |
| Ripple and Noise (Current, rms) | 3 mA rms |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
Sorensen DCR40-13B Options:
- DCR40-13B - M1 - 208 Vac ± 10% input voltage
- DCR40-13B - M2 - 220 Vac ± 10% input voltage
- DCR40-13B - M3 - 230 Vac ± 10% input voltage
- DCR40-13B - M35 - Polarity & load disconnect
- DCR40-13B - M50 - LCD digital meters
| Model | DCR40-13B |
|---|
The DCR40-13B is a member of the 500W DCR-B family of general purpose, rackmount Power supplies. It features Dual Analogue panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and over Voltage protection (OVP).
