Sorensen

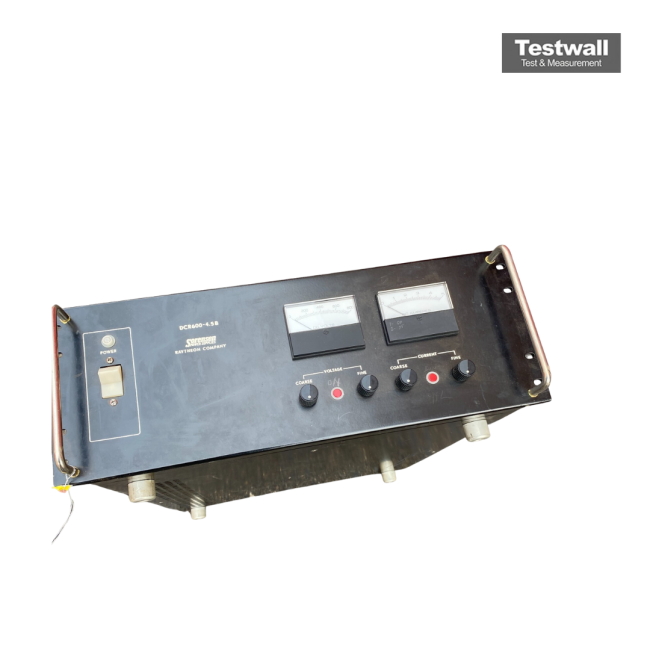

Sorensen DCR600-4.5B
600-4.5A DC Power Supply
0 - 600 VDC Output Voltage
0 - 4.5 A Output Current
2700 W Output Power
208/240 VAC, Single Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 600 VDC |
| Output Current | 0 - 4.5 A |
| Output Power | 2700 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% + 2 mV |
| Load Regulation | 0.01% + 2 mV |
| Ripple and Noise | 35 mV RMS / 150 mV Peak-to-Peak |
| Operating Temperature | 0°C to 50°C |
| Form Factor | Rack Mount, 3U |
Sorensen DCR600-4.5B Options:
- DCR600-4.5B - M1 - 208 Vac ± 10% input voltage
- DCR600-4.5B - M2 - 220 Vac ± 10% input voltage
- DCR600-4.5B - M3 - 230 Vac ± 10% input voltage
- DCR600-4.5B - M35 - Polarity & load disconnect
- DCR600-4.5B - M50 - LCD digital meters
| Model | DCR600-4.5B |
|---|
The DCR600-4.5B is a member of the 2700W DCR-B family of general purpose, rackmount Power supplies. It features Dual Analogue panel Meters, automatic crossover between constant Voltage (CV) and constant current (CC), and optional Voltage protection (OVP).
