Sorensen

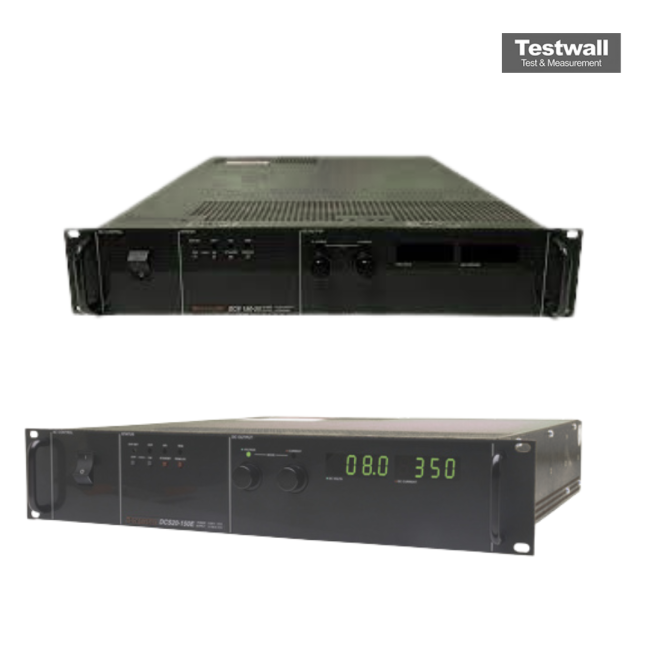

Sorensen DCS150-20
150-20 DC Power Supply
0 - 150 VDC Output Voltage
0 - 20 A Output Current
3000 W Output Power
108 - 132 VAC / 216 - 264 VAC, Single Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 150 VDC |
| Output Current | 0 - 20 A |
| Output Power | 3000 W |
| Input Voltage | 108 - 132 VAC / 216 - 264 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% of full scale output |
| Load Regulation | 0.01% of full scale output |
| Output Ripple & Noise | 75 mV peak-to-peak maximum |
| Remote Programming Interface | 0 - 5 VDC or 0 - 10 VDC analog, RS-232/RS-485 optional |
| Operating Temperature | 0°C to 50°C |
Sorensen DCS150-20 Options:
- DCS150-20 - M1 - Factory configured for 115 VAC input (1 and 1.2 kW units only)
- DCS150-20 - M9C - Internal IEEE-488/RS 232 Interface Card with voltage and current readback and adjustable OVP
- DCS150-20 - M13 - Locking shafts (front panel potentiometers)
- DCS150-20 - M32 - Master/slave paralleling cable configured for two or more units
- DCS150-20 - M33 - Replace input connector with terminal block (3 kW only)
- DCS150-20 - M51A - Isolated analog programming control of V/I/OVP and isolated V/I monitor outputs up to 500V relative to the supply's return line
- DCS150-20 - M85 - Multichannel slave interface allows use of a single GPIB address (using 1 master unit with M9C option) to control multiple units via a standard RS485 connector (3 ft. connector included)
| Model | DCS150-20 |
|---|
