Sorensen

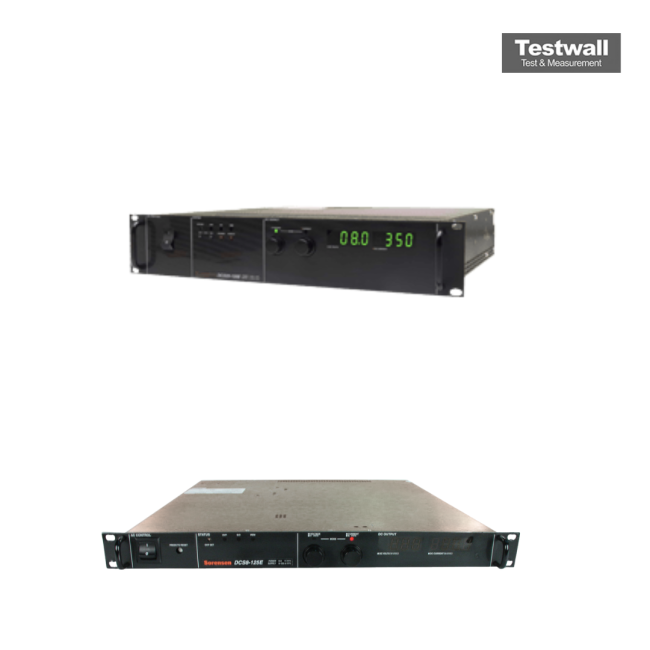

Sorensen DCS300-3.5
300-3.5 DC Power Supply
0 - 300 VDC Output Voltage
0 - 3.5 A Output Current
1050 W Output Power
208/240 VAC, Single Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 300 VDC |
| Output Current | 0 - 3.5 A |
| Output Power | 1050 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% + 2 mV |
| Load Regulation | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 15 mV RMS |
| Programming Interface | Analog, RS-232, GPIB (optional) |
| Form Factor | Rack Mount, 3U |
Sorensen DCS300-3.5 Options:
- DCS300-3.5 - M1 - Factory configured for 115 VAC input (1 kW and 1.2 kW units only)
- DCS300-3.5 - M9C - Internal IEEE-488/RS 232 Interface Card with voltage and current readback and adjustable OVP
- DCS300-3.5 - M13 - Locking shafts (front panel potentiometers)
- DCS300-3.5 - M32 - Master/slave paralleling cable configured for two units
- DCS300-3.5 - M33 - Replace input connector with terminal block (3 kW only)
- DCS300-3.5 - M51A - Isolated analog programming control of V/I/OVP and isolated V/I monitor outputs up to 500V relative to the supply's return line
- DCS300-3.5 - M85 - Multichannel slave interface allows use of a single GPIB address (using 1 master unit with M9C option) to control multiple units via a standard RS485 connector (3 ft. connector included)
| Model | DCS300-3.5 |
|---|
300V, 3.5A DC Power Supply
