Sorensen

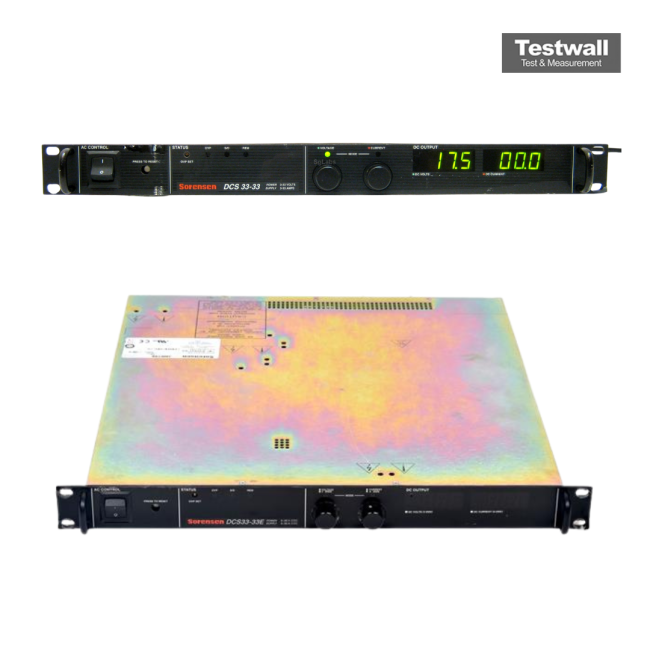

Sorensen DCS33-33
33-33 DC Power Supply
0 - 33V Output Voltage
0 - 33A Output Current
1000W Output Power
100/115/230 VAC, Single Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 33V |
| Output Current | 0 - 33A |
| Output Power | 1000W |
| Input Voltage | 100/115/230 VAC, Single Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation (Voltage) | 0.01% + 2mV |
| Load Regulation (Voltage) | 0.01% + 2mV |
| Ripple and Noise (RMS) | 1mV RMS |
| Operating Temperature | 0°C to 50°C |
| Interface/Programming | Analog Programming, RS-232/RS-485 Optional |
Sorensen DCS33-33 Options:
- DCS33-33 - M1 - Factory configured for 115 VAC input (1 and 1.2 kW units only)
- DCS33-33 - M9C - Internal IEEE-488/RS 232 Interface Card with voltage and current readback and adjustable OVP
- DCS33-33 - M13 - Locking shafts (front panel potentiometers)
- DCS33-33 - M32 - Master/slave paralleling cable configured for two or more units
- DCS33-33 - M51A - Isolated analog programming control of V/I/OVP and isolated V/I monitor outputs up to 500V relative to the supply's return line
- DCS33-33 - M85 - Multichannel slave interface allows use of a single GPIB address (using 1 master unit with M9C option) to control multiple units via a standard RS485 connector (3 ft. connector included)
| Model | DCS33-33 |
|---|
