Sorensen

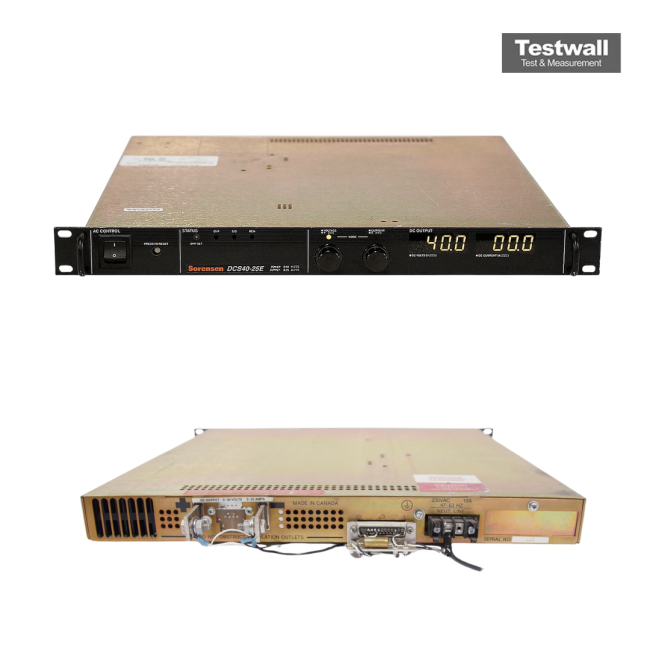

Sorensen DCS40-25
40-25 DC Power Supply
0 – 40 VDC Output Voltage
0 – 25 A Output Current
1000 W Output Power
105–132 VAC / 210–264 VAC, Single Phase, 47–63 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 40 VDC |
| Output Current | 0 – 25 A |
| Output Power | 1000 W |
| Input Voltage | 105–132 VAC / 210–264 VAC, Single Phase, 47–63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage, RMS) | 1 mV RMS |
| Programming Interface | Analog (0–5 V or 0–10 V), Rear Panel Connectors |
| Operating Temperature | 0°C to 50°C |
| Form Factor / Dimensions | Rack Mountable, 3U |
| Model | DCS40-25 |
|---|
The DCS40-25 is a compact, 1000W rackmount Power Supply. It is ideal for use in High density environMents where rack space is at a premium. It features simultaneous Digital display of both Voltage and current, 10-turn Voltage & current potentiometer contr
