Sorensen

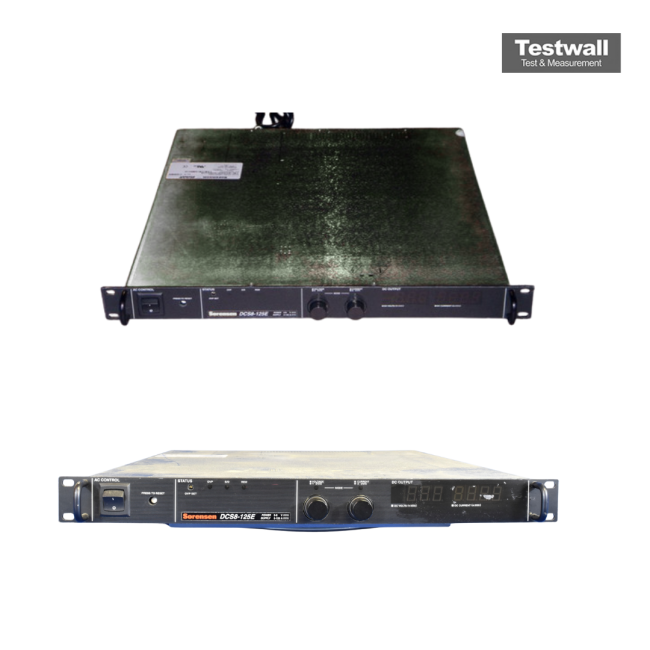

Sorensen DCS8-125
8-125 DC Power Supply
0 - 8 VDC Output Voltage
0 - 125 A Output Current
1000 W Output Power
105-132 VAC / 210-264 VAC, Single Phase, 47-63 Hz Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 8 VDC |
| Output Current | 0 - 125 A |
| Output Power | 1000 W |
| Input Voltage | 105-132 VAC / 210-264 VAC, Single Phase, 47-63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Line Regulation (Current) | 0.01% + 2 mA |
| Load Regulation (Current) | 0.01% + 2 mA |
| Operating Temperature | 0°C to 50°C |
| Cooling Method | Fan Cooled |
Sorensen DCS8-125 Options:
- DCS8-125 - M1 - Factory configured for 115 VAC input (1 and 1.2 kW only)
- DCS8-125 - M9C - Internal IEEE-488/RS 232 interface
- DCS8-125 - M13 - Locking shafts (front panel potentiometers)
- DCS8-125 - M32 - Master/slave cable configured for two or more units
- DCS8-125 - M51A - Isolated analog programming control of V/I/OVP and isolated V/I monitor outputs up to 500V relative to the supply's return line
- DCS8-125 - M85 - Multichannel slave interface allows use of a single GPIB address (using 1 master unit with M9C option) to control multiple units via a standard RS485 connector (3 ft. connector included)
| Model | DCS8-125 |
|---|
