Sorensen

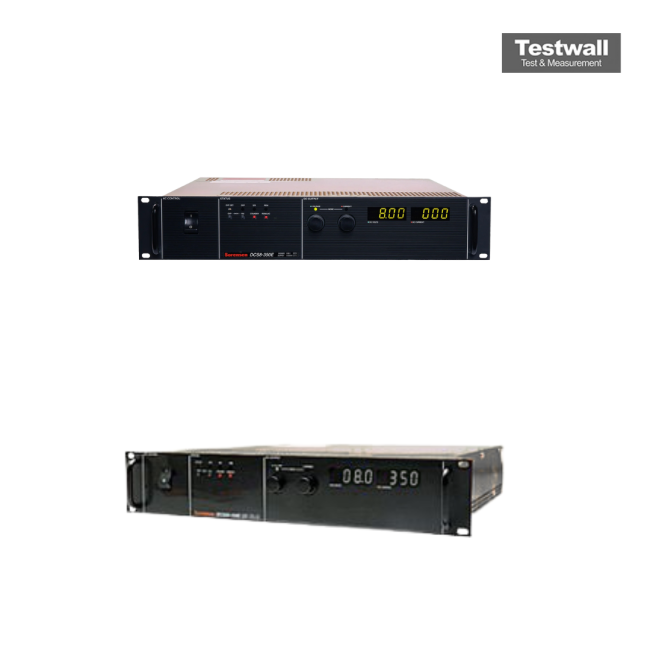

Sorensen DCS8-350
8-350 DC Power Supply
0 – 8 VDC Output Voltage
0 – 350 A Output Current
2800 W Output Power
208/240 VAC, Single or Three Phase Input Voltage
0.01% + 2 mV Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 8 VDC |
| Output Current | 0 – 350 A |
| Output Power | 2800 W |
| Input Voltage | 208/240 VAC, Single or Three Phase |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple & Noise (Voltage, rms) | 10 mV rms |
| Programming Interface | Analog (0–5V or 0–10V), RS-232/RS-485 Optional |
| Operating Temperature | 0°C to 50°C |
| Cooling Method | Forced Air Cooling |
Sorensen DCS8-350 Options:
- DCS8-350 - M1 - Factory configured for 115 VAC input (1 and 1.2 kW only)
- DCS8-350 - M9C - Internal IEEE-488/RS 232 interface
- DCS8-350 - M13 - Locking shafts (front panel potentiometers)
- DCS8-350 - M32 - Master/slave cable configured for two or more units
- DCS8-350 - M33 - Replace input connector with terminal block (3 kW only)
- DCS8-350 - M51A - Isolated analog programming control of V/I/OVP and isolated V/I monitor outputs up to 500V relative to the supply's return line
- DCS8-350 - M85 - Multichannel slave interface allows use of a single GPIB address (using 1 master unit with M9C option) to control multiple units via a standard RS485 connector (3 ft. connector included)
- DCS8-350 - 105-330-26 - Rack slide kit (3 kW only)
| Model | DCS8-350 |
|---|
