Sorensen

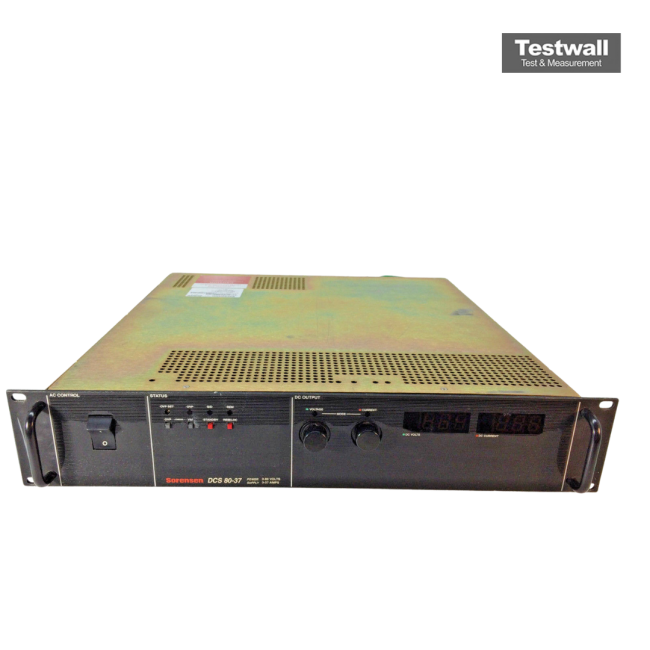

Sorensen DCS80-37
80-37 DC Power Supply
0 – 80 VDC Output Voltage
0 – 37 A Output Current
3000 W Output Power
208/240 VAC, Single Phase Input Voltage
47 – 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 80 VDC |
| Output Current | 0 – 37 A |
| Output Power | 3000 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 – 63 Hz |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (RMS) | 15 mV RMS / 150 mV peak-to-peak |
| Operating Temperature | 0°C to 50°C |
| Interface / Programming | Analog Programming, RS-232/GPIB Optional |
Sorensen DCS80-37 Options:
- DCS80-37 - M1 - Factory configured for 115 VAC input (1 and 1.2 kW units only)
- DCS80-37 - M9C - Internal IEEE-488/RS 232 Interface Card with voltage and current readback and adjustable OVP
- DCS80-37 - M13 - Locking shafts (front panel potentiometers)
- DCS80-37 - M32 - Master/slave paralleling cable configured for two or more units
- DCS80-37 - M33 - Replace input connector with terminal block (3 kW only)
- DCS80-37 - M51A - Isolated analog programming control of V/I/OVP and isolated V/I monitor outputs up to 500V relative to the supply's return line
- DCS80-37 - M85 - Multichannel slave interface allows use of a single GPIB address (using 1 master unit with M9C option) to control multiple units via a standard RS485 connector (3 ft. connector included)
- DCS80-37 - 105-330-26 - Rack slide kit (3 kW only)
| Model | DCS80-37 |
|---|
