Sorensen

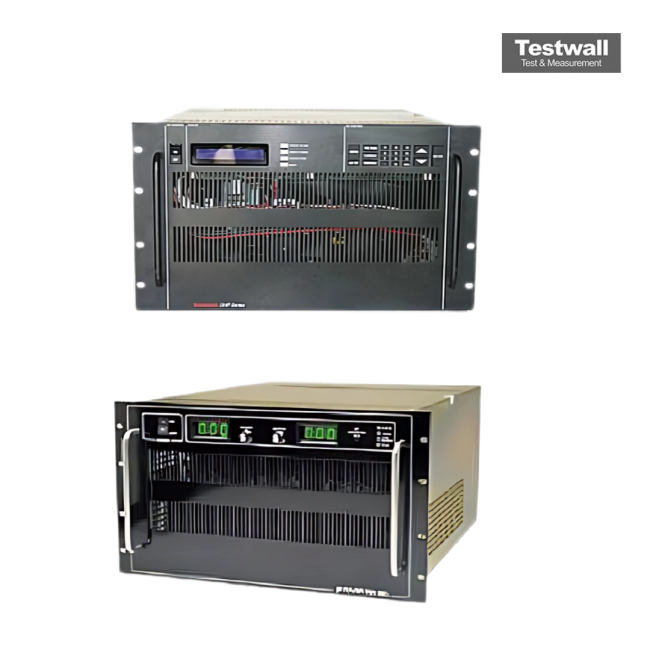

Sorensen DHP 40-330
40-330 DC Power Supply
0 - 40 VDC Output Voltage
0 - 330 A Output Current
13,200 W (13.2 kW) Output Power
208/220/240 VAC, 3-Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 40 VDC |
| Output Current | 0 - 330 A |
| Output Power | 13,200 W (13.2 kW) |
| Input Voltage | 208/220/240 VAC, 3-Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% of full scale output |
| Load Regulation | 0.01% of full scale output |
| Ripple and Noise | 0.05% RMS / 0.15% peak-to-peak of full scale output voltage |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Form Factor / Dimensions | Rack mountable, 19-inch rack, 3U chassis |
Sorensen DHP 40-330 Options:
- DHP - Three, 3-wire plus ground - Three-phase input power option (2 kW to 3 kW series)
- DHP - 400 VAC - 400 VAC input voltage option (tested to 360-440 VAC) (5 kW to 30 kW series)
- DHP - 480 VAC - 480 VAC input voltage option (tested to 432-528 VAC) (5 kW to 30 kW series)
| Model | DHP |
|---|
The Sorensen DHP 40-330 is a DC Power Supply.
