Sorensen

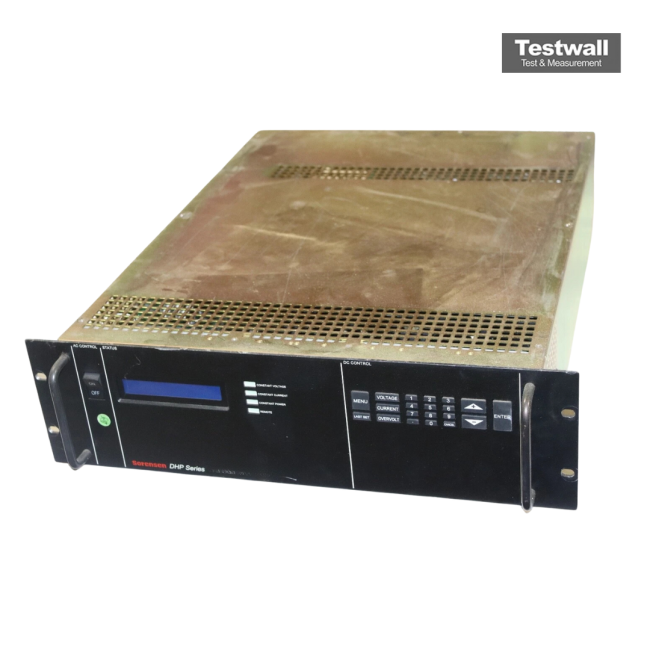

Sorensen DHP250-60
250-60 DC Power Supply
0 - 250 VDC Output Voltage
0 - 60 A Output Current
15,000 W (15 kW) Output Power
208/240 VAC, 3-Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 250 VDC |
| Output Current | 0 - 60 A |
| Output Power | 15,000 W (15 kW) |
| Input Voltage | 208/240 VAC, 3-Phase |
| Input Frequency | 47 - 63 Hz |
| Line Regulation | 0.01% of full scale output |
| Load Regulation | 0.01% of full scale output |
| Ripple and Noise | 0.05% RMS / 0.15% peak-to-peak of full scale output |
| Operating Temperature | 0°C to 50°C |
| Interface / Programming | Analog programming and monitoring; optional GPIB, RS-232, and Ethernet interfaces available |
Sorensen DHP250-60 Options:
- DHP250-60 - Three, 3-wire plus ground - Three-phase input option (2 kW to 3 kW series)
- DHP250-60 - 400 VAC - 400 VAC input voltage option (tested to 360-440 VAC)
- DHP250-60 - 480 VAC - 480 VAC input voltage option (tested to 432-528 VAC)
| Model | DHP250-60 |
|---|
