Sorensen

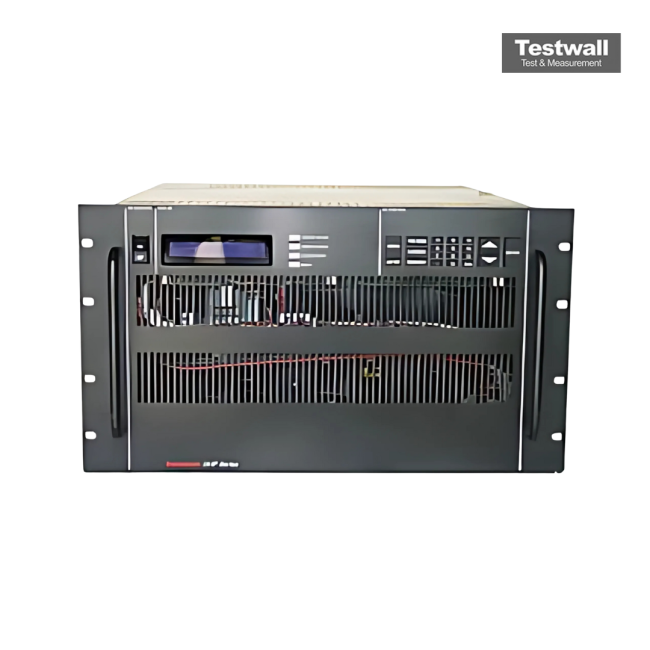

Sorensen DHP40-250
40-250 DC Power Supply
0 - 40 V Output Voltage
0 - 250 A Output Current
10,000 W (10 kW) Output Power
208/240 VAC, 3-Phase Input Voltage
47 - 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 - 40 V |
| Output Current | 0 - 250 A |
| Output Power | 10,000 W (10 kW) |
| Input Voltage | 208/240 VAC, 3-Phase |
| Input Frequency | 47 - 63 Hz |
| Voltage Regulation (Line/Load) | 0.02% + 2 mV |
| Current Regulation (Line/Load) | 0.05% + 25 mA |
| Output Ripple & Noise (RMS) | 10 mV RMS / 50 mA RMS |
| Programming Interface | Analog (0-5V / 0-10V), RS-232/RS-485 (optional GPIB/LXI) |
| Operating Temperature | 0°C to 50°C |
Sorensen DHP40-250 Options:
- DHP40-250 - Three, 3-wire plus ground - Three-phase input (optional, for 2 kW to 3 kW series)
- DHP40-250 - 400 VAC - 400 VAC input voltage option (tested to 360-440 VAC)
- DHP40-250 - 480 VAC - 480 VAC input voltage option (tested to 432-528 VAC)
| Model | DHP40-250 |
|---|
