Sorensen

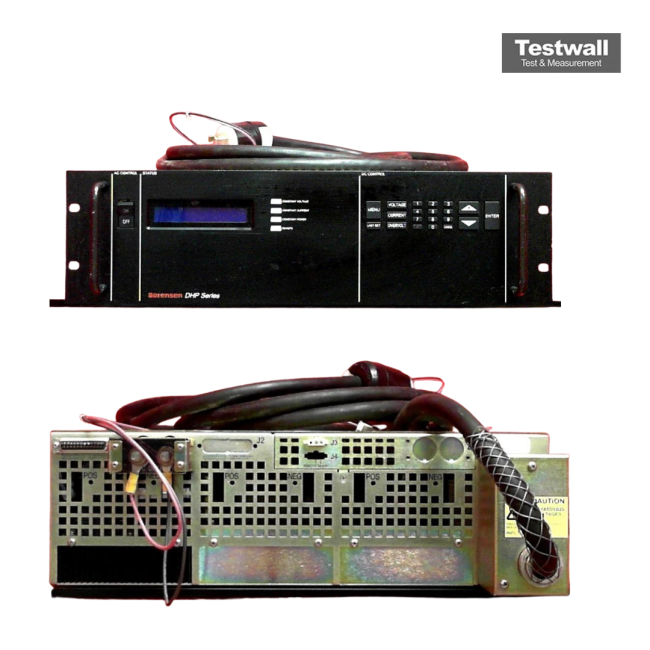

Sorensen DHP400-12
400-12 DC Power Supply
0 – 400 VDC Output Voltage
0 – 12 A Output Current
4800 W Output Power
208/240 VAC, Single Phase Input Voltage
47 – 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 400 VDC |
| Output Current | 0 – 12 A |
| Output Power | 4800 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 – 63 Hz |
| Line Regulation | 0.01% of full scale output |
| Load Regulation | 0.01% of full scale output |
| Ripple and Noise (RMS) | 0.05% of full scale output voltage |
| Operating Temperature | 0°C to 50°C |
| Cooling Method | Fan Cooled |
Sorensen DHP400-12 Options:
- DHP400-12 - Three-phase input - Three, 3-wire plus ground (optional)
- DHP400-12 - 400VAC - 400 VAC input option (tested to 360-440 VAC)
- DHP400-12 - 480VAC - 480 VAC input option (tested to 432-528 VAC)
| Model | DHP400-12 |
|---|
